Tiernan Video HMR-5442 MPEG-4 Professional Satellite IRD
Supports all common HD & SD Video formats including MPEG-4 4:2:2

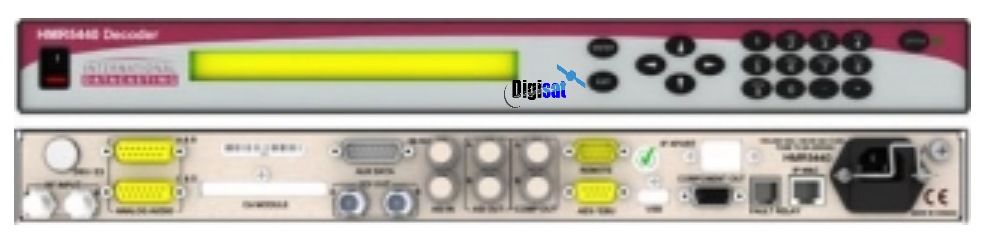

HMR-5442 MPEG-4 4:2:2 Satellite IRD
The HMR5442 Series SD-HD Satellite & IP Professional Video Receiver IRD is a rugged, compact and multi-format professional IRD. The 5442 is used in broadcast contribution and distribution applications where multiple video formats (SD and HD), interface flexibility (Satellite and IP) and content protection (BISS) are required.
Performance
The HMR 5442 series offers an unprecedented combination of features, performance and reliability at an industry leading price. Both versions of the HMR support SD and HD, and MPEG-2 and MPEG-4 decoding. This IRD also adds 4:2:2 functionality in MPEG-2 and MPEG-4, including 10bit 4:2:2 in MPEG-4. The HMR-5442 also includes full 1080p60 decoding and output along with support for AAC audio. This series is a perfect complement to IDC’s TITAN MPEG Video Encoder.
Video
The HMR5442 supports all common HD and SD video formats. Multiple video output formats are supported including: analog NTSC and PAL, and digital SDI for standard definition; and HD-SDI and component video for high definition. The HMR5442 adds support for 1080p50/60 3G-HD-SDI and HDMI. Video processing is automatically sensed by the decoder and processed as either MPEG-2 or MPEG-4, SD or HD. Included in the basic functionality of both models is video resolution conversion from HD to SD, and from SD to HD, and aspect ratio conversion from 4:3 to 16:9 and from 16:9 to 4:3.
Audio Decoding
The HMR decodes up to eight audio channels (four pairs) with analog and digital outputs, and embedded within the SDI or HD-SDI video signal. Genlock (Frame Sync): The HMR may optionally be configured with internal frame sync for Genlocked applications. Unlike competitive products, correct lip sync is guaranteed—even while operating in frame sync mode. Input Interfaces: Both HMR models are highly flexible and offer various input interfaces including ASI, DVB-S, DVB-S2, MPEG over IP, and DS3/E3.
Operation Controlling
The HMR series supports an embedded Web browser interface and SNMP support for easy command and control programming. It also offers the options of RS-232 command line management and control. As with all International Datacasting (Tiernan) products, the HMR5442 has a fully featured front panel control.
Base Unit |
|
|
QPSK L-band DVB-S Receiver |
QPSK 2 * L-band 950 to 2150 mhz, 1 to 45 Msps |
|
DVB-S / DVB-S2 Demod |
DVB-S (QPSK,8PSK,16QAM) & DVB-S2 (QPSK, 8PSK, 16APSK) 2 * L-band 950 to 2150 mhz, 1 to 45 |
|
IP input interface |
UDP, RTP, RTP with COP3 FEC |
|
E3 / DS3 interface |
44.736 or 34.368 ,bps |
|
ASI input |
Maximum Transport rate = 213 mbps |
|
ASI output |
Active ASI loop output |
Video |
|
|
MPEG-2 4:2:0 Main Profile @ Main Level (1 to 15 Mbps) |
|
|
(AVC) MPEG-4 Part-10 (AVC) Main Profile @ Level 3.0 (0.1 to 10Mbps) |
|
|
Horizontal Resolutions |
720, 544, 480, and 352 |
|
Vertical Resolutions |
480/240 (NTSC) and 576/288 (PAL) |
|
MPEG- AVC MP @ L4 to 20 Mbps, 1080i 25, 29.97, and 30 fps, 720P 50, 59.94, and 60 fps |
|
|
MPEG-2 4:2:0 Main Profile @ High Level (Up To 80 Mbps) |
|
|
HD Resolutions |
1920 x 1080i (30, 29.97, 25 fps) and 1280 x 720p (60, 59.94, & 50 fps) |
Output |
|
|
Composite Analog NTSC (525) or PAL (625) |
|
|
Serial Digital Component Video (SMPTE 259M) |
|
|
Two Serial Digital Outputs Per SMPTE 292M SDI @ 1.485 Gbps, BNC |
|
|
Analog HD Video, 15-Pin D Connector |
|
|
VBI Data |
ATSC Closed Captioning (EIA-608) & (EIA-708) |
Audio |
|
|
Four Audio Channels Standard (2 pairs) |
|
|
Four Additional Channels optional (2 pairs) |
|
|
Analog, Digital or Embedded |
|
|
MPEG or Dolby ®AC-3 2.0 decode |
|
|
Linear PCM , and Dolby® E Pass-Through |
|
Scrambling |
|
|
BISS (Basic Interoperable Scrambling System) Modes 1, and E (Optional) |
|
|
PGCA - included as standard feature |
|
M&C |
|
|
Embedded Web Browser Interface For Command and Control |
|
|
SNMP |
|
|
RS-232 Proprietary Command Line Monitor & Control |
|
|
Fully functional Front Panel control |
|
Physical Dimensions |
|
|
1RU Standard 19" Rack-Mount - 8.9 cm High x 48.3 cm Wide x 58.4 cm Deep |
|
|
Weight 5kg (11 lbs.) |
|
|
Power Supply |
Operating Voltage: 95 - 135 VAC or 180 - 265 VAC, 32 Watts (Typical) |
|
Operating Conditions |
Ambient Temperature: 0° to 50°C |
MPEG-2 and MPEG-4 4:2:2 decoding
