SKU
SED-D3
SED Decimator 8-Port D3 Spectrum Analyzer is available to buy in increments of 1

8 user selectable input ports, covers full satellite L-band plus cable and wireless bands from 5 MHz to 3 GHz, built-in Carrier Monitoring and Cross-Pol Isolation functions, External 10 MHz reference or internal reference, Web browser or API control

Decimator D3 Multi-Port

The SED Decimator D3 is a third generation spectrum measurement and analysis unit in a 1U chassis with an integrated 8-port RF switching capability. It is ideal for either local or remote monitoring of multiple feeds and carriers in satellite, cable or terrestrial wireless networks.

 SED Decimator D3 Spectrum View

The Multi-Port Decimator D3 uses state of the art digital technology and Fast Fourier  transformations to make lightning fast and accurate measurements. With a very low noise floor and large dynamic range, it is well-suited to measure any type of satellite, cable or terrestrial wireless carrier, including very small carriers, beacon signals and for carrier monitoring applications. Decimator accepts all signals from 5 MHz to 3 GHz and input power levels ranging from –110 to +5 dBm. RBW varies from 1 Hz to 15 MHz. The Decimator can be connected to an external 10 MHz reference for improved frequency accuracy and stability. All data communications with the Decimator occurs via its built-in Ethernet port.

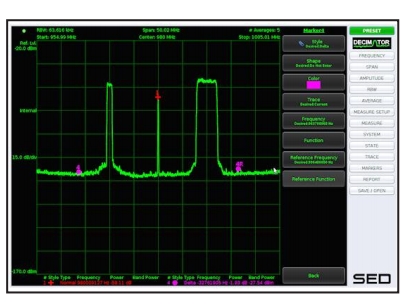

SED Decimator D3 Spectrum Screenshot

It can be installed anywhere, occupying only 1U in a standard equipment rack, allowing you to monitor up to 8 different feeds. This is ideal for a teleport, VSAT hub cable head end, cell tower or broadcast facility with multiple feeds to monitor. It is available with 75-ohm F-type connectors or 50-ohm SMA connectors on the inputs. It can also be provided as a 4-Port Decimator, which is the same unit limited to 4 operational ports, allowing expansion to the other 4 ports in the future if required. No need to install additional hardware.

Features

The 8-Port Decimator’s powerful Graphical User Interface (GUI) is available using any standard web browser. No additional software is required. The GUI is very easy to use and operates like most traditional spectrum analyzers. It provides user-selectable colors for markers and traces, allows storage of multiple traces and provides measurement reporting. The Decimator GUI also includes two powerful applications: The built-in Carrier Monitoring function provides notification via email or SNMP of carrier measurements that exceed user-defined limits, offering you peace of mind that up to 100 of your carriers are operating as expected. The 8-Port Decimator also includes a convenient Cross-Pol Isolation measurement function, allowing you to display both Co-Pol and Cross-Pol signals simultaneously, along with the isolation value.

SED Decimator D3 Configuration Block Diagram

The 8-Port Decimator provides network access to all technical staff connected to the facility network or a corporate wide area network. This allows all technical staff the ability to monitor feeds and carriers at any time and from any location in the world using only a web browser.

D3 Features Overview

RF Input:



Input Frequency Range:

5 MHz to 3,000 MHz

Useable Dynamic Range:

-110 to +5 dBm (aggregate)

Noise Floor:

-150 dBm/Hz typical at min atten



-130 dBm/Hz typical at max atten

Phase Noise:

-80 dBc/Hz at 1 kHz offset

(worst case at 3 GHz)

-95 dBc/Hz at 100 kHz offset



-125 dBc/Hz at 1 MHz offset

Maximum Safe Input:

+10 dBm

Input Isolation (port to port):

45 dB (min)

Input Return Loss:

-15 dB (min)

Measurements:



Amplitude Accuracy:

± 0.5 dB (at 25°C)1



± 1.0 dB (0 to 40°C)

Frequency Accuracy:

± 2.6 ppm (internal)



or as per external

Frequency Resolution:

1 Hz

Resolution Bandwidth:

1 Hz to 15 MHz

Analysis Bandwidth:

up to 220 MHz

Spurious:



Images:

< -55 dBc (typical)

Aliasing:

< -55 dBc (typical)

DC Offset:

< -30 dBc (typical)

Averaging:

up to 255 averages

Measurement Speed3:



500 MHz span, 1 MHz RBW

200 ms

200 MHz span, 30 kHz RBW

630 ms

80 MHz span, 100 kHz RBW

170 ms

3.5 MHz span, 8 kHz RBW

90 ms

Other Specifications:



Reference Input:

10 MHz, -5 dBm to +13 dBm,



+3 dBm to +13 dBm (auto-sensing)

Control Interface:

TCP/IP API, SNMP, HTTP

Power Requirements:

120/240 VAC, 50/60 Hz, 25W

Operational Temperature Range:

0 to 40°C



Ideal for either local or remote monitoring of multiple feeds and carriers in satellite, cable or terrestrial wireless networks.
