Norsat Ka-Band 9000XH MIL-STD Ext. Reference LNB (20.20 - 21.20 GHz)
Frequencies from: 20.20 - 21.20 GHz, L.O. Stability: Phase locked to External Reference, RF Output: Type-N Connector, 1.3 dB Noise Figure, LO frequency: L: 950 - 1950, H:1000-2000 MHz

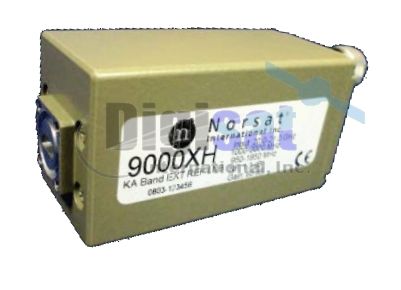

9000XH Ext. Reference Ka-Band LNB
The Norsat 9000XH Ka-Band External Reference Low Noise Block Down Converter (LNB) is MIL-STD-188 and 164 compliant and delivers excellent RF performance over Ka-Band satellite frequencies ranging from 20.20 - 21.20 GHz. The 9000XH LNB features an extremely stable local oscillator that's Phase locked to External Reference. Dual L-Band IF ouputs L: 950 to 1950 and H: 1000 to 2000 is provided via a precision type-N female connector. RF frequency input is a grooved WR42 waveguide flange.

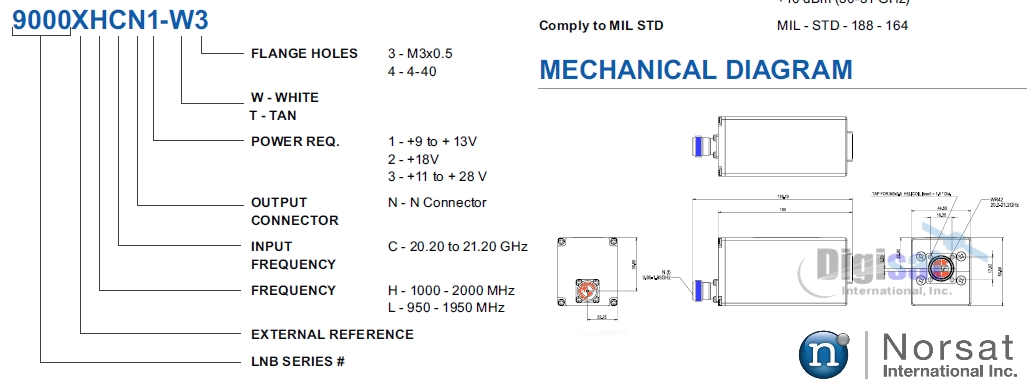

LNB Part Numbers
9000XHCN1-W4
9000XHCN2-W4
9000XHCN3-W4
9000XLCN1-W4
9000XLCN2-W4
9000XLCN3-W4
Tan color exterior and M3x0.5 flange is also available.
Local oscillator frequency: 20.25 GHz
Noise Figure: 1.6 dB
LNB Ordering Information
Noise figure 1.3 dB
L.O. stability Phase locked to External Reference
Phase noise -63 dBc/Hz at 100 Hz
(SSB) max -80 dBc/Hz at 1 kHz
-92 dBc/Hz at 10 kHz
-100 dBc/Hz at 100 kHz
Input VSWR 1.3 : 1
Output VSWR 1.44 : 1
|
Typical service |
9000XH |
|
|
Input frequency (GHz) |
20.20 to 21.20 |
|
|
L.O. frequency (GHz) |
L: 19.25 |
H: 19.20 |
|
Output frequency (MHz) |
L: 950 to 1950 |
H: 1000 to 2000 |
Conversion gain 60 dB
Output P1dB >3 dBm
Power requirements +9 to +13 V supplied through center conductor of IF cable (optional +18 V or +11 to + 28 V)
Waveguide Flange WR42
Current drain 400 mA
Dimensions 120 (L) x 45 (W) x 51(H) mm (2.0 x 1.8 x 3.9 in)
Weight 350 g / 12.3 oz
Temperature Range -30°C to +55°C
Input Stability Unconditionally Stable
Gain Flatness 2.5 dB p-p over Full Band
Gain Variation over Temp ±2 dB
External Reference 10 MHz, -3 to +3 dBm
Desensitization -25 dBm (30 - 31 GHz)
Max Input no damage 0 dBm (20.2 - 21.2 GHz)
+10 dBm (30-31 GHz)
Comply to MIL STD MIL - STD - 188 - 164
Military and Government satellite communications
