Quintech Electronics PUL 070D 70 MHz IF to L-Band Upconverter
70 MHz IF to L-Band Upconverter
PUL 070D 70 MHz IF to L-Band Upconverter
This product has reached end of life and is no longer available. Please contact Digisat for a suitable replacement.
The Quintech PUL 070D PULD00701330NZB000 is an ultra-stable frequency converter that translates a 70 MHz IF channel to a 1330 L-Band channel. Based on Quintech’s PLL stabilized fixed channel frequency converters, the PUL features a stability performance that meets the IESS 308/309 standard, and is suitable for current high speed data transmission rates and high order modulations.
Highly Stable

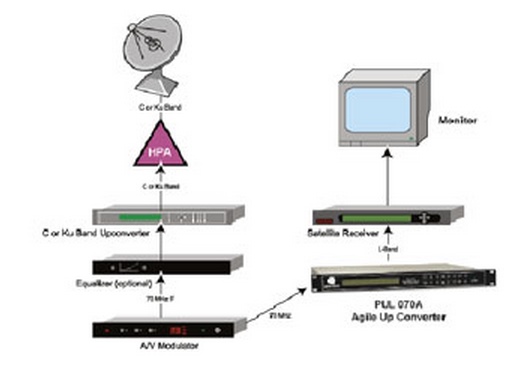

Quintech’s PDL Series Single Channel Per Carrier (SCPC) L-band down converters feature highly improved phase noise and stability performance that exceeds the IESS 308/309 standard, and are suitable for all current high-speed data transmission rates and advanced digital modulation schemes. They are frequently used in test loop translator applications and any application where it is necessary to convert between intermediate frequency and an L-Band frequency.
Features & Benefits:
Very low phase noise characteristics, maintaining a cleaner signal
Ideal solution for test loop translator applications
Convenient, well organized rack mount configuration
Supports Legacy 70 MHz Equipment

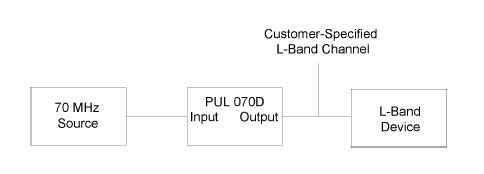

System Configuration
Special Instructions
To utilize the PULD00701330NZB000, connect a 70 MHz line to the "70 MHz" connector on the rear panel of the unit. The 1330 MHz L-Band channel will be present at the L-BAND connector, also on the rear panel. Primary power required is 100-240 V~, 2 Amp via the IEC AC connector.
NOTE: The PULD00701330NZB000 has been designed for indoor use only. Opening the unit will immediately void the
warranty.
|
Input Frequency: |
70 MHz IF |
|
|
Output Bandwidth (-3 dB): |
36 MHz |
|
|
Input Power Level: |
-50 to -20 dBm |
|
|
Overall Gain/Loss: |
0 dB + 2 dB |
|
|
Output Frequency: |
1330 MHz, non-inverting |
|
|
L.O. Stability: |
+1 ppm |
|
|
Input Return Loss: |
13 dB |
|
|
Output Return Loss: |
10 dB |
|
|
Spurious: |
-50 dBc |
|
|
Phase Noise: |
Offset (Hz) (dBc/Hz) 10 -60 |
|
|
|
100 |
-75 |
|
|
1,000 |
-76 |
|
|
10,000 |
-78 |
|
|
100,000 |
-99 |
|
|
1,000,000 |
-110 |
|
Output Connector: |
Type F, 75 Ω |
|
|
Input Connector: |
BNC, 75 Ω |
|
|
Power Requirements: |
100-240 V~, 50/60 Hz |
|
|
Power Consumption: |
17 W |
|
|
Operating Temperature: |
+10o to +60o C |
|
|
Mechanical: |
1 RU (1.75" H x 19" W x 12.5" D) |
|
|
Weight: |
7.5 lbs. gross (boxed), 5.0 lbs. net |
|
Converts 70 MHz IF channels to 1330 MHz L-Band
