PDL 070D L-Band to 70 MHz IF Downconverter
This product has reached end of life and is no longer available. Please contact Digisat for a suitable replacement.
The Quintech PDL 070D D13300070NZB000 is an ultra-stable frequency converter that translates a 1330 MHz L-Band channel to a 70 MHz IF channel. Based on Quintech's PLL stabilized fixed channel frequency converters, the PDL features a stability performance that meets the IESS 308/309 standard, and is suitable for current high speed data transmission rates and high order modulations.
Low Phase Noise
Quintech’s PDL Series Single Channel Per Carrier (SCPC) L-band down converters feature highly improved phase noise and stability performance that exceeds the IESS 308/309 standard, and are suitable for all current high-speed data transmission rates and advanced digital modulation schemes. They are frequently used in test loop translator applications and any application where it is necessary to convert between intermediate frequency and an L-Band frequency.
Benefits
Very low phase noise characteristics, maintaining a cleaner signal
Ideal solution for test loop translator applications
Convenient, well organized rack mount configuration
Supports Legacy 70 MHz Equipment

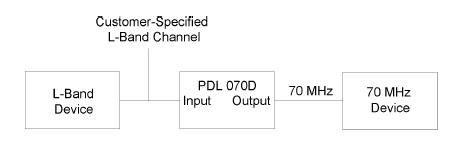

System Configuration
Special Instructions
To utilize the PDLD13300070NZB000, connect a customer-specified L-Band channel to the “L-BAND” connector on the rear panel of the unit. The 70 MHz output will be present at the “70 MHz” connector, also on the rear panel.
NOTE: The PDL 070D PDLD13300070NZB000 has been designed for indoor use only. Opening the unit will immediately void the
warranty.
|
Input Frequency: |
1330 MHz, non-inverting |
|
Output Bandwidth (-3dB): |
36 MHz |
|
Input Power Level: |
-50 to -20 dBm |
|
Overall Gain/Loss: |
0 dB + 2 dB |
|
Output Frequency: |
70 MHz IF |
|
L.O. Stability: |
+1 ppm |
|
Input Return Loss: |
10 dB |
|
Output Return Loss: |
14 dB |
|
Spurious: |
-50 dBc |
|
Phase Noise: |
Offset (Hz) (dBc/Hz) 10 -58 |
|
|
100 -72 |
|
|
1,000 -73 |
|
|
10,000 -76 |
|
|
100,000 -100 |
|
|
1,000,000 -110 |
|
Output Connector: |
BNC, 75 Ω |
|
Input Connector: |
Type F, 75 Ω |
|
Power Requirements: |
100-240 V~, 50/60 Hz |
|
Power Consumption: |
17 W |
|
Operating Temperature: |
+10o to +60o C |
|
Mechanical: |
1 RU (1.75" H x 19" W x 12.5" D) |
|
Weight: |
7.5 lbs. gross (boxed), 5.0 lbs. net |
Frequency conversion from 1330 MHz L-Band to 70 MHz IF
