Quintech Electronics PUL 070A Agile 70 MHz to L-Band Data Grade Upconverter

Multi Functionality

Quintech’s PUL Series L-band up converters are suitable for all current high-speed data transmission rates and advanced digital modulation schemes. They are frequently used in test loop translator applications and any application where it is necessary to convert between intermediate frequency and an L-band frequency.

Features

Very low phase noise characteristics, maintaining a cleaner signal

Ideal solution for test loop translator applications

Convenient, well organized rack mount configuration

Supports Legacy 70 MHz Equipment

System Operation

The front panel keypad and LCD screen are used to set various operating parameters and to monitor and control the agile PUL. Depending on the task being performed, various submenu screens will appear.  Upon applying power to the agile PUL, a product identification screen will be displayed briefly, followed by the Main Menu.

Internal Storage

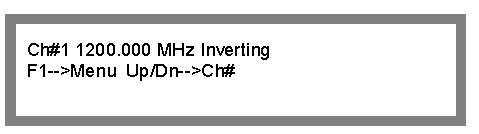

The agile PUL is capable of storing between one and four user-designated L-Band frequencies and their corresponding frequency sense (inverting/non-inverting) in the agile PUL’s internal memory (channels 1 through 4). The L-Band frequency to which the 70 MHz IF signal is converted is that which is contained in the memory channel that is currently displayed in the Main Menu. For example if the channel in the Main Menu is displaying channel 1 and it has a specified frequency of 1200.000, the 70 MHz IF signal will be translated to an L-Band frequency of 1200 MHz.
