CPI SAT X-Band Outdoor Antenna Mounted 350W SSPA DPXB8350R
X-Band Military Satcom amplifier
DPXB8350R X-Band
The CPI SAT (formerly GD Satcom Technologies & Prodelin) X-Band Outdoor Antenna Mounted 350W SSPA DPXB8350R uses technology developed for ModuMAX amplifiers, this outdoor SSPA features a modular architecture with field- replaceable RF assemblies and offers an output power of 350 watts across the standard 7.90–8.40 GHz satellite uplink band. Housed in a weatherproof NEMA 4X enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna.
Reliability
Built for reliable, trouble-free service, the amplifiers incorporate a microprocessor-based monitor and control system.
Features
- Field-replaceable RF assemblies
- 350 W saturated output power
- Microprocessor-based monitor and control
- Serial interface (RS-232/-422/-485)
- Output isolator for high load VSWR protection
- 20 dB range digital gain adjustment
- RF output sample port
- External mute input
- Reflected power monitoring
Applications
- Stand-alone SSPA

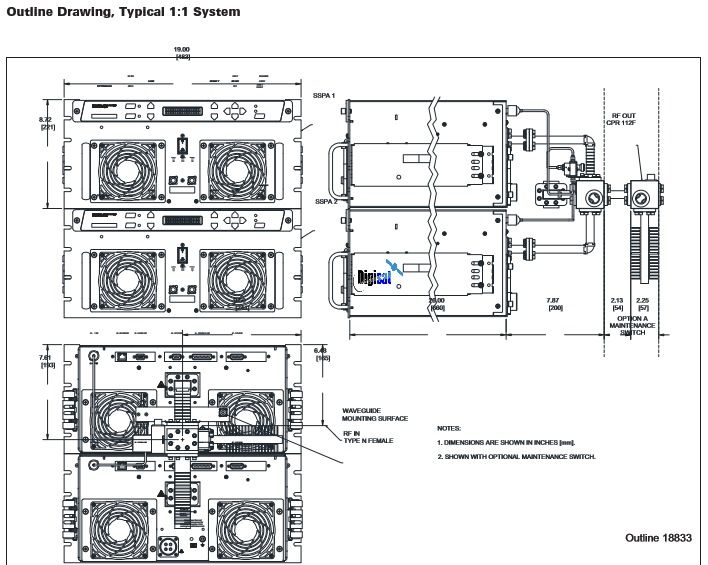

- 1:1 and 1:2 redundant systems
- Government and Military systems
Options
- Block upconverter
Operating Frequency
- 7.90 to 8.40 GHz
All X-Band satellite earth station antennas and larger VSAT terminals
