CPI SAT 6.3m Tx/Rx Intelsat Approved Cassegrain Earth Station Antenna
Simple bolt together installation, Intelsat Type Approval, excellent for compact earth station applications

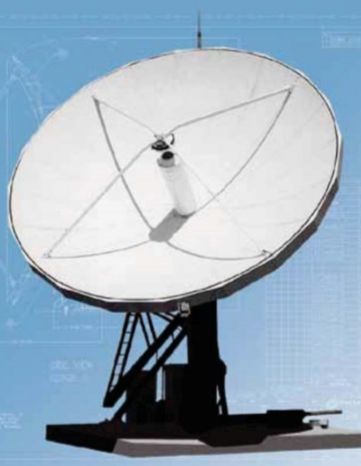

6.3M Cassegrain Satellite Ground Station
The CPI SAT (formerly GD Satcom Technologies & Prodelin) 6.3 meter antenna delivers exceptional performance for transmit/ receive and receive-only applications for C through Ku-band frequencies. This antenna offers a deep dish reflector that incorporates precision-formed panels, contoured radials and hub assembly. It features an innovative feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference.
Rugged Construction
The aluminum reflector is supported by a galvanized kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations. The electrical performance is compliant with ITU and FCC sidelobe specifications. Type Approved configurations are available for Intelsat (F2, E2), Asiasat, Hispasat or Singapore Telecom. All configurations meet SATCOM Technologies’ own type- approved quality assurance and performance guarantee.
|
Frequency (GHz) |
3.625 -5.850 - |
3.625 -5.850 - |
7.250 -7.900 - |
10.700 -13.750 - |
10.700 -17.300 - |
|
|
4.200 6.425 |
4.200 6.425 |
7.750 8.400 |
12.750 14.500 |
12.750 18.400 |
|
Antenna Gain, Midband (dBi) (2) |
46.54 50.70 |
46.30 50.20 |
52.00 52.60 |
55.70 57.50 |
55.40 59.40 |
|
VSWR Pattern Beamwidth (2) |
1.25:1 1.25:1 |
1.25:1 1.25:1 |
1.25:1 1.25:1 |
1.30:1 1.30:1 |
1.30:1 1.30:1 |
|
-3 dB, at midband Antenna Noise Temperature (K) |
0.81° 0.50° |
0.82° 0.52° |
0.41° 0.38° |
0.26° 0.22° |
0.28° 0.17° |
|
5° Elevation |
49 |
51 |
63 |
87 |
78 |
|
10° Elevation |
40 |
42 |
53 |
74 |
64 |
|
20° Elevation |
34 |
37 |
46 |
66 |
55 |
|
40° Elevation |
32 |
34 |
43 |
61 |
50 |
|
Typical G/T (dB/K) (3) |
28.4 |
28.1 |
32.4 |
34.4 |
34.4 |
|
|
(4.000 GHz, 30 K LNA) |
(4.000 GHz, 30 K LNA) |
(7.500 GHz, 45 K LNA) |
(11.725 GHz, 70 K LNA) |
(11.725 GHz, 70 K LNA) |
Intelsat Satellite Network operation, C, Ku, and X-Band transmit and receive
