CPI SAT RC3050 3-Axis Jog Controller for Mobile Satcom Antennas
Automatically switches drive to desired axis, Ensures easy upgrades to Auto-Location, Inclined-Orbit Tracking, PC-Remote Control

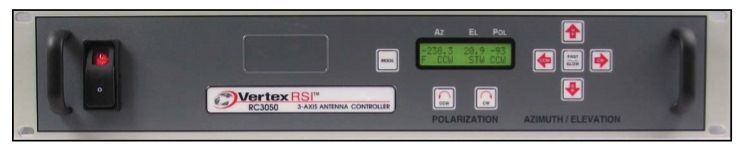

RC3050 Flyaway VSAT Antenna Control System
The CPI SAT (formerly GD Satcom Technologies & Prodelin) RC3050 is a 3-Axis Antenna Controller that features Jog Operation & Automatically switches drive to desired axis. Simultaneous Angle Display Read Azimuth, Elevation and Polarization angles in a single glance are standard features.
PHYSICAL
Size: 19.0” x 3.5” x 17.0” (rack)
Weight: 15.0 lbs.
Temperature: 0 – 50 C
Input Power: 115/230 VAC: switchable (A model), specify input power when ordering
(B model), 50/60 Hz., 50 W idle, 750W when moving
CE compliant
DRIVE
Output: 0 – 48 VDC, 12 Amps, A model
0 – 130 VDC, 12 Amps, B model
Sensor Input: Potentiometer for Az and Pol,
Inclinometer and Limit Switches for Elevation
Polarization: 12 VDC, 1 Amp max., B model
Automatic control of mobile satellite communications antennas and flyaway systems
