RCI RC2500 Dual Axis Resolver Based Inclined Orbit Satellite Antenna Controller
Fully compatible with all popular antenna drive systems

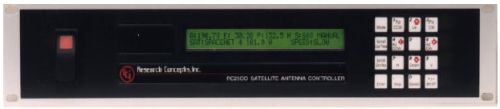

RC2500 Two Axis Antenna Control System
The RC2500 Dual Axis Antenna Controller controls antennas which are fitted with resolver type position sensors and are powered via an Antenna Interface Unit (AIU) located on the antenna pad. Both tracking (RC2500B) and non-tracking (RC2500A) versions are available.
RC2500 antenna movement commands are communicated to the AIU via low voltage control circuits. The AIU contains the motor drive modules and is often equipped with a local jog control panel. The antenna limit switches are processed by the AIU and limit switch indications are relayed back to the RC2500.
Various versions of the RC2500 are available for retrofit to existing antenna systems or use with new installations. The existing synchros and cabling for position sensing would need to be replaced on most antennas with synchroresolvers compatible with the RC2500.
These RC2500 versions include support for the following types of system applications
Vertex 7134/7150: Plug compatible with AIU
Harris 9135: Plug compatible with AIU
Andrew APC 100/300: Plug compatible with AIU
Scientific Atlanta 8840: Wiring modifications required to AIU
Scientific Atlanta 8151: Wiring modifications required to AIU
Harris 7022: Wiring modifications required to AIU
NPL 9000: Wiring modifications required to AIU
Electrospace 93C-23: Wiring modifications required to AIU
Easy Installation Options
Digisat provides full antenna controller retrofit services on all popular antennas with the above antenna controller systems. We can provide turnkey installation, setup and testing services to retrofit the RCI RC2500 system to any of your motorized satellite antennas. We also supply custom pre-built antenna controller retrofitting kits that include resolvers, cabling, resolver brackets, resolver bellows and weatherproof resolver covers. The RC2500 is an ideal replacement for the aging Andrew APC 100 and APC 300 controller. Digisat also provides integrated M&C setup services to access the RC2500 via an ethernet web browser based GUI.
