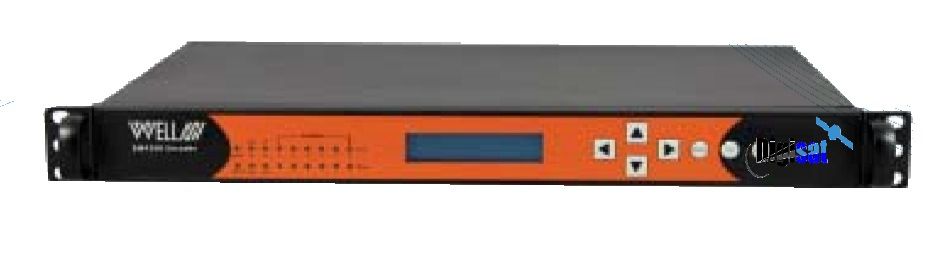

Wellav Digital SMP330 8PSK Multi-Channel QAM Transmodulator
Compact 1RU chassis, Supports both ASI and IP Video input options
SMP-330 Dual Transmodulation Content Delivery
The Wellav SMP330 provides ASI and IP input/output options. SMP330 can support MPTS and SPTS input/output with multiplexing, private data insertion and scrambling capability. SMP330 provides a cost-effective yet scalable solution for network operators to re-distribute its content via HFC network.
Features
1) Output 8 QAM- RF channels or 4 DVB-T channels
2) ASI/IP output for monitoring and redistribution
3) ASI/IP input for local content and private data insertion
4) Support cherry picking and program remultiplexing
5) Option to add DVB-simulcrypt scrambling capability
DVB-S/S2 Input |
|
|
Constellation: |
QPSK, 8 PSK |
Symbol Rate |
|
|
DVB-S: |
1~45 Msps |
|
DVB-S2: |
1~31.5 Msps |
|
Input Frequency: |
950~2150 MHz |
|
Signal Level: |
-65~-256 dBm |
|
Acquisition Range: |
+/- 5 MHz |
|
Tuner Step Size: |
100 KHz |
|
Return Loss: |
>10 dB |
LNB Power |
|
|
Vertical: |
11.5V~14.0V, |
|
Horizontal: |
16.0V~19.0V |
|
22K Switch: |
on/off |
|
|
|
QAM RF Output |
|
|
Physical Outputs: |
one connector for 8XRF |
|
Output Frequency Range: |
48 - 862 MHz |
|
Output Frequency Step Size: |
50 KHz |
|
RF Channel: |
8 (6/7/8 MHz) |
|
QAM Modulation Mode: |
16/32/64/128/256 QAM |
|
QAM Type: |
ITU-T J.83 Annex A/ C, |
|
Symbol Rate: |
1.0~6.9 MBauds |
Output Level |
|
|
Effective,single channel: |
90~115 dBuV |
|
Combined, 8 channel: |
90~106dBuV |
|
MER: |
≥40dB (Equalized) |
|
BER: |
≤5×10-9 (64QAM,6.875Msps) |
|
|
|
DVB-T Output |
|
|
Physical Outputs: |
one connector for 4XRF |
|
Output Frequency Range: |
50 - 858 MHz |
|
Output Frequency Step Size: |
50 KHz |
|
Transmission Mode: |
2K, 8K |
|
Guard Interval: |
1/4, 1/8, 1/16 and 1/32 |
|
Constellation: |
QPSK, 16QAM, 64 QAM |
|
FEC: |
1/2, 2/3, 3/4, 5/6, 7/8 |
Output Level |
|
|
Effective, Single channel: |
90~115 dBuV |
|
Combined, 4 channel: |
90~112dBuV |
|
|
|
GBE IP Input |
|
|
Interface: |
1 x 1000 Mbps per port |
|
IP Encapsulation: |
MPEG TS over UDP/RTP |
|
MPEG TS: |
MPTS and SPTS |
|
I/O Processing: |
Up to 12 Sockets, max at 72 Mbps per socket |
|
Addressing: |
Unicast and Multicast |
|
Management: |
IGMPv1, IGMPv2, IGMPv3 |
|
Forward Error Correction: |
ProMPEG |
|
|
|
DVB ASI Inputs |
|
|
Interface: |
4 BNC connectors (2 ASI inputs and 2ASI outputs), 75Ω |
|
MPEG Format: |
188/204Bytes per TS |
|
I/O Processing: |
1 MPTS/SPTS per port, up to 120 Mbps per port |
|
|
|
Re-multiplexing |
|
|
PID: |
Re-mapping and Filtering |
|
MPTS Output Synchronization: |
|
|
Routing: |
Any Input to Any Output |
|
Redundancy: |
Input Service Redundancy & IP Port Redundancy |
|
|
|
DVB Scrambling (future feature) |
|
|
TS Streams: |
up to 8 TS streams (maximum 72 Mbps per TS) |
|
Support DVB simulcrypt (maximum 4 CAS simultaneously) |
|
|
CAS support: |
Irdeto,Conax, Viaccess, Nagravision, |
|
|
|
CAS |
|
|
Scrambling level: |
Program or PID |
|
|
|
Management |
|
|
Interface: |
100Base-TX, RJ45 |
|
NMS: |
Wellav Digital Service Manager |
|
Web-based Management (future feature): |
|
|
Support SNMP: |
|
|
|
|
Physical & Environment |
|
|
Input Voltage: |
90 - 260 VAC |
|
Power Consumption: |
Approx 100 W |
|
Rack Space: |
1 RU |
|
Dimension (WxHxD): |
480mm x 44mm x 440mm |
|
Operating Temperature: |
0 oC to 50 oC |
|
Storage Temperature: |
-40 oC to 65oC |
|
Relative Operating Humidity: |
<95% |
Dual Transmodulation of 8PSK Modulation Formats
