International Datacasting Laser Two Ad Insertion Video Receiver & Stream Splicer
Satellite receiver, Stream Splicer & Ad Insertion all in one chassis
LASER Two Ad Insertion Stream Splicer Video Receiver
Satellite Video Receiver with integrated Ad Server and Stream Splicing for Broadcast Distribution Networks
A cost effective solution for ad insertion, International Datacasting LASER Two Receiver allows broadcasters to increase their advertising revenues by offering regional or local ad insertion and blackout for satellite delivered content.
Ad Insertion for Satellite Distribution
LASER enables broadcasters distributing content via satellite to increase advertising revenues by inserting regional or local commercials at the edge of the network. It also opens up the door to additional advertising clients, as broadcasters are no longer constrained by regional licensing or regulatory issues, and can simply blackout and replace advertising inventory to suit their needs. Each receive location can be addressed individually or by geographical area. LASER provides pinpoint accuracy, allowing satellite operators to offer advertisers the same level of ad insertion granularity offered by Cable TV or IPTV providers.
Frame Accurate Remote Site Splicing
Most ad insertion systems available in the market today are designed for high density commercial insertion within a Cable TV or IPTV headend. Until now, cost effective, edge‐based ad insertion for satellite delivery has not been available. LASER combines frame accurate video splicing within the remote site receiver, with ad content delivery and SCTE‐35‐based splicing control at the headend, to provide broadcasters delivering content by satellite with an easy‐to‐deploy, elegant solution for increasing advertising revenue.
Content Distribution and Ad Insertion
LASER uses a narrow data channel multiplexed alongside the primary video feed to distribute advertising content. IDC’s market‐leading Centient Media Aware Content Delivery Network (CDN) platform uses this data channel to deliver and manage advertising content on the network’s population of receivers. Triggering of advertising insertion may be passed through (if contained in the original feed), or is alternately controlled by the Ad Insertion Module (AIM) of IDC’s Production Manager product. IDC’s LASER receivers support frame accurate video switching, providing broadcast quality splicing over satellite enabling commercial insertion granularity down to even an individual site.
Professional IP and RF Interfaces
The LASER platform supports the professional distribution segment of the market. LASER supports ad and program insertion for a single channel of video content, outputing compressed domain MPEG transport stream over IP for retransmission, as well as digital and analog video and audio outputs.
Video & Audio Capabilities |
|
Video Decoding |
MPEG-2 |
Video Output Resolution |
1080p 60, 1080p 50 |
Chrominance Subsampling |
MPEG-2, MPEG-4 AVC, VC-1 4:2:0 MPEG-2 4:2:2 (natively) |
Audio Decoder |
Dolby® Digital 5.1 |
RF Input |
|
Frequency Range |
950 to 2150 MHz |
Frequency Tuning Steps |
Synthesized 1 Hz steps |
AFC Range (drift tracking) |
+2 MHz maximum |
Maximum input Level |
‐25 to 65 dBm @ 27.5 MS/s |
Connector |
Type-F, female |
Impedance |
75 ohms, unbalanced |
RF Input - LNB |
|
LNB DC Power |
+18 VDC maximum (horizontal polarity), or +13 VDC at 500 mA (vertical polarity) center conductor posi |
DVB-S Mode |
|
Symbol Rate |
1 to 45 MS/s |
Modulation |
QPSK, 8PSK |
FEC Type |
DVB concatenated |
Alpha Factor |
0.35 |
DVB-S2 Mode |
|
Demodulation/Symbol Rate |
1 to 45 MS/s |
Modulation |
QPSK, 8PSK |
FEC Type |
Concatenated, LDPC and BCH QPSK 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (1/4, 1/3, 2/5 normal blocks only) |
Alpha Factor |
0.20,0.25, 0.35 |
Front Panel Indicators |
|
6 keys |
Menu, CH+/CH‐, VOL+/VOL‐, OK |
LED status indicator (power/standby/signal) |
|
Work status and LCD display |
|

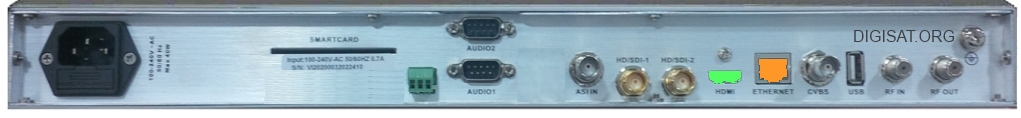

Connectors |
|
Ethernet |
RJ45‐Ethernet on 10/100 Base-T |
Video |
HDMI with embedded audio |
Audio |
Analog: left and right on 2x RCA female |
Encryption (Future Use) |
Smart Card reader: ISO 7816‐1/2/3/4 (1 slot) |
LNB |
LNB IN |
ASI (LASER Two ONLY) |
ASI Input, BNC |
SDI Output (LASER Two ONLY) |
HD-SDI 3G Output, BNC |
Power Requirements |
|
Power Supply Type |
Internal with detachable line cord |
Supply Voltage |
90 to 240 VAC, 50 or 60 Hz |
Power Consumption |
40 Watts maximum |
Physical Parameters |
|
Chassis |
1RU rackmount |
Dimensions (H, W, D) |
4.5 cm x 48 cm x 36 cm (1.75” x 19” x 14”) |
Weight |
1.9 kg (4 lbs.) |
Environmental Conditions |
|
Operating Temperature |
0° to 40° C (32° to 104° F) |
Storage Temperature |
‐20° to 70° C (‐4° to 158° F) |
Humidity |
Maximum 90% relative, non-condensing |
Professional Video Distribution, Advertisement Insertion, Regionalized Programming
