Wavestream Gilat 500W C-Band Solid-State Troposcatter Amplifier
Transmit Frequency 4.4 - 5.0 GHz, Small Signal Gain 35 dB nominal, P1 dB Output Power 57 dBm

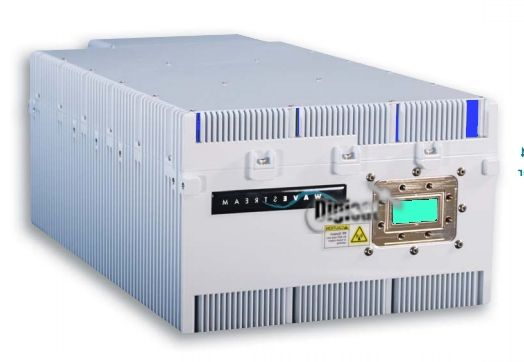

500 Watt Troposcatter SSPA
The Wavestream Gilat 500W Troposcatter SSPA takes high efficiency to a new level in solid-state power amplifiers. Wavestream’s proprietary spatial power combining enables packing 500 Watts into a rugged 85-lb. unit that can be mounted directly on medium aperture antennas, maximizing the power into the feed and further enhancing system-level efficiency.
Compact
The compact 24” x 12” x 8” SSPA provides the required linearity for troposcatter links. It provides high reliability to minimize life cycle costs even in the most demanding applications and extreme environments (- 40°C to + 60°C).
RF Specifications
Transmit Frequency 4.4 - 5.0 GHz
Small Signal Gain 35 dB nominal
P1
dB Output Power 57 dBm
Rated Output Power 57 dBm
Intermodulation
with two equal carriers at 6 dB total power
backoff from rated power
-31 dBc
Spectral Regrowth (typical)
at 2 dB below rated power at 1.0x
symbol rate offset for OQPSK or QPSK
-30 dBc
Output Spurious -60 dBc
AM/PM Conversion
up to rated power
2.5 deg/dB
Power
AC Power 200 - 240 VAC, 50-60 Hz
AC Prime Draw (typical)
At rated power output
2.2 KVA
Interfaces
Input Port Connector Type N Female
Input Port Impedance 50 Ohms
RF Sample Port Type N Female
RF Port Connector WR-187
RF Output VSWR 1.25:1 max
AC Connector 4-Pin Circular
M&C Connector 19-Pin Military Circular
Monitor and Control Serial RS-485 (SA-bus), Forward
Power Monitor
Physical
Size 24” L x 12” W x 8” H
Weight 85 lbs
Operating Temperature -40°C to +60°C
Base Model Number
MHA-CTR500
500W for Higher Data Rate Capability, Industry Leading Efficiency with 2.4 KVA for 500 Watts of Output Power, High Reliability Lowers Life Cycle Cost
