Wavestream Gilat Ku-Band AeroStream Transceiver 25W 40W
Transmit RF Frequency 14.0 - 14.5 GHz, 13.75 - 14.5 GHz, 14.0 - 14.5 GHz, 13.75 - 14.5 GHz, IF Frequency 950 - 1450 MHz, 950 - 1700 MHz, 950 - 1450 MHz, 950 - 1700 MHz
Aerostream Ku-Band Transceiver
The Wavestream Gilat AeroStream transceiver offers unmatched efficiency and performance for the challenging airborne environment. AeroStream products meet the requirements of RTCA/DO-160G, Boeing, Airbus and ARINC specifications for commercial aircraft as well as MIL-STD requirements for military aircraft. AeroStream incorporates Wavestream’s next generation Spatial Power Advantage technology to provide high power output with greater efficiency and reliability for airborne satellite communications system applications.
High Efficiency
AeroStream products are biased for Class AB operation, drawing less power when backed off to reduce thermal loading and ensure higher MTBF (Mean Time Between Failures) for greater reliability and lower lifecycle costs.
Versatile

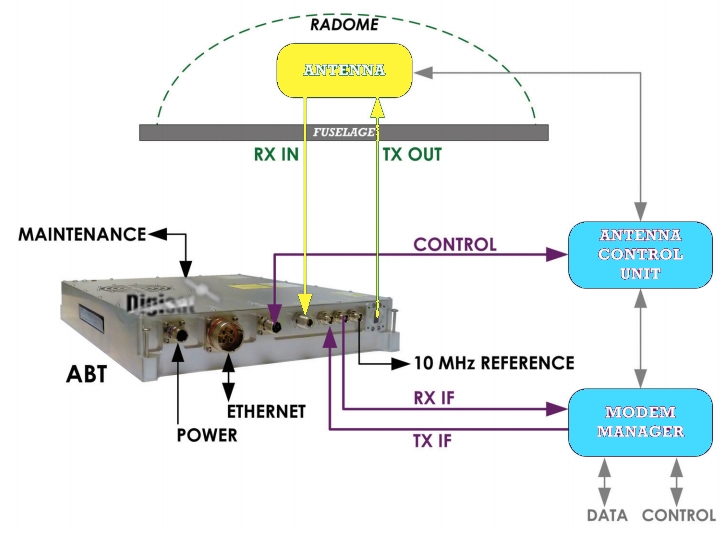

The AeroStream transceiver provides the necessary interfaces to work seamlessly with leading modems and Antenna Control Units (ACU) to provide a convenient turnkey solution.
Transmit Specifications 25W 40W
Transmit RF Frequency
- Standard
- Extended
14.0 - 14.5 GHz
13.75 - 14.5 GHz
14.0 - 14.5 GHz
13.75 - 14.5 GHz
IF Frequency
- Standard
- Extended
950 - 1450 MHz
950 - 1700 MHz
950 - 1450 MHz
950 - 1700 MHz
IF Input VSWR 1.5:1 1.5:1
Small Signal Gain 61 dB (nominal) 61 dB (nominal)
Gain Adjustment 20 dB 20 dB
Gain Variation (over frequency at fixed temperature) 1 dB p-p over 36 MHz
3 dB p-p over full band
1 dB p-p over 36 MHz
3 dB p-p over full band
Gain Variation (over temperature at fixed frequency) 3 dB p-p over operating range 3 dB p-p over operating range
Saturated Output Power 44.5 dBm (nominal) 46.5 dBm (nominal)
P1dB Output Power >44 dBm >46 dBm
Rated Output Power * 44 dBm 46 dBm
Intermodulation*
(Third order intermodulation product relative to combined power of two carriers at 3dB total power back-off from Rated Output Power)
-25 dBc -25 dBc
Spectral Regrowth*
(For QPSK at 1.5X and OQPSK at 1.0X symbol rate offset offset at 2dB total power back-off from Rated Output Power)
-30 dBc -30 dBc
RF Output VSWR 1.5:1 1.5:1
Phase Noise 1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
< -69 dBc/Hz
< -69 dBc/Hz
< -81 dBc/Hz
< -87 dBc/Hz
< -122 dBc/Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
< -69 dBc/Hz
< -69 dBc/Hz
< 81 dBc/Hz
< -87 dBc/Hz
< -122 dBc/Hz
AM/PM Conversion (up to 2 dB below Rated Output Power) 2 deg/dB 2 deg/dB
Noise Power Density - Transmit -100 dBm/Hz -100 dBm/Hz
Noise Power Density - Receive -60 dBm/MHz (maximum) -60 dBm/MHz (maximum)
Output Spurious -60 dBc -60 dBc
Airborne Qualified Commercial and Military, Compact Package, Transceiver Available in 25W or 40W Transmit Output and Full Ku-band Receive
