Sat-Lite Technologies RC3000 Vehicle Mounted Antenna Controller
Built-in GPS, L-Band input: 950 ‐ 1750 MHz typical from LNB, Type-F Connector, Output power: 24 VDC to Az/El/ Pol Motors

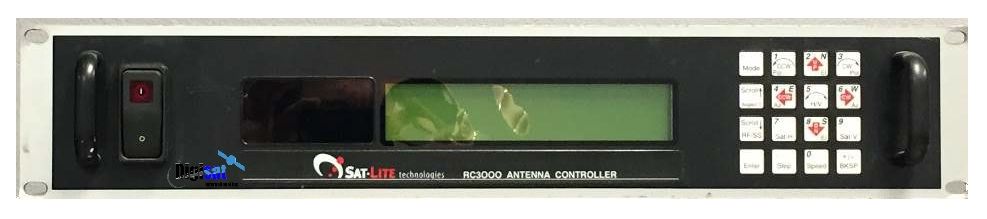

RC3000 Vehicle Mount Antenna Controller
The Sat-Lite RC3000 Vehicle Mounted Antenna Controller is designed to automatically locate and peak on a target satellite with the simple push of a button. A user friendly menu based interface is provided with a keypad and LCD Display.
The control system includes a GPS and Compass to automatically calculate look angles and locate stored satellites (up to 50). The unit is designed to operate with a full array of Sat-Lite Technologies Vehicle Mount Antennas from 1.0 meter to 2.4 meter applications.
Key Features
High Reliability 2 RU Rack Mount Controller with Display Panel and Keypad User Interface
Optional Ethernet Interface for Local or Remote Control
Optional DVBS-2 Receiver for Positive Satellite ID
GPS and Compass for Fast Acquisition and Autolocate Features
Auto Stow / Deploy Features
Optional Tracking Receiver for Inclined Orbit Tracking
For use on all Vehicle Mounted Motorized antennas
