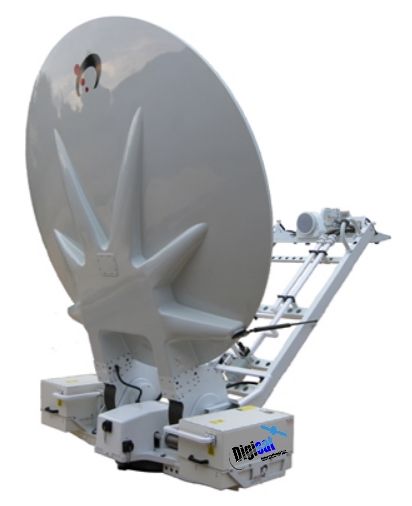

Sat-Lite Peloris 2411 2.4M Vehicle Mounted VSAT SNG Antenna
3-Piece Reflector Option reduces stowed footprint, 28.3 db/°K G/T at Ka-band Circular, Meets DSCS on all X-Band frequencies
2411 2.4M Vehicle Mount VSAT SNG Antenna
The Sat-Lite 2411 Peloris vehicle mounted 2.4 meter VSAT SNG offers the most robust, lightweight and compact antenna of its type and size available. This antenna features a carbon fiber composite reflector and back-beam structure designed to provide exceptional performance along with a custom-designed elevation-over-azimuth cable drive pedestal to reduce vehicle mounting space.
The Peloris 2411 antenna is designed to meet international performance specifications for commercial or military applications and is readily available in Ka-, Ku-, X-, and/or C-band frequencies. Multiple feed configurations are available. The antenna is available with multiple controller configurations that include manual jog control, auto satellite locate with peaking options, and full tracking capabilities with beacon receiver.
Key Features
Intelsat and Eutelsat Compliant
Multi-Band C, X, Ku or Ka band Frequencies
Multi Integration Options
Integrated Controller with Tracking Options Available
Carbon Fiber Reinforced Polymer Structure – Lightweight and Stiff
Low Profile and SpaceOptimizing Stow Position
Cable Drive Positioning System
Superior Stability in Wind
Excellent Reliability
Minimal Maintenance
Single or 3 Piece Reflector Option
Live Sporting Event Broadcasting, Newsgathering, Military Satellite Communications, Broadband Satellite Internet, Disaster Recovery Communications
