Sat-Lite Peloris 2441 2.4M Vehicle Mounted Motorized SNG Antenna
Meets ITU, FCC 25.209, Eutelsat, Azimuth Drive Rate up to 1°/sec 0.4°, resolution 0.4° Std

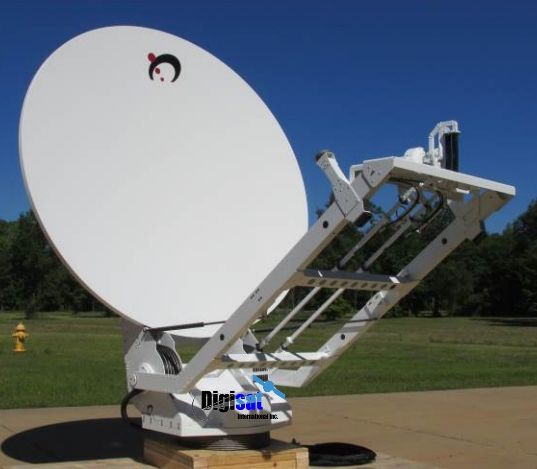

2441 2.4M Vehicle Mount SNG Antenna
The Sat-Lite 2441 2.4 meter vehicle mounted motorized SNG antenna is robust and light-weight designed for demanding high power broadband and video broadcast uplink applications. This antenna features a high precision carbon fiber composite reflector and aluminum back-beam structure designed to provide exceptional performance in a lightweight package.
The Peloris 2441 antenna also uses Sat-Lite’s elevation-over-azimuth cable drive pedestal which offers reduced vehicle mounting space. The antenna is designed to meet international performance specifications for commercial or military applications and is readily available in C-, X-, Ku- and/or Ka-band frequencies. Multiple feed configurations are available. The antenna is available with multiple controller configurations that include manual jog control, auto-locate with peaking options, and full tracking capabilities with beacon receiver.
Key Features
Intelsat and Eutelsat Compliant
Multi-Band C-, X-, Ku- or Ka-band Frequencies
Multiple Integration Options
Integrated or Rack Mounted Controller with Tracking Options Available
Carbon Fiber Reflector / Precision Aluminum Backbeam
Low Profile and SpaceOptimizing Stow Position
Cable Drive Positioning System
Single or 3 Piece Reflector Option
Motorized Folding Wing Option (3 Piece)
Live Sporting Event Broadcasting, Newsgathering, Military Satellite Communications, Broadband Satellite Internet, Disaster Recovery Communications
