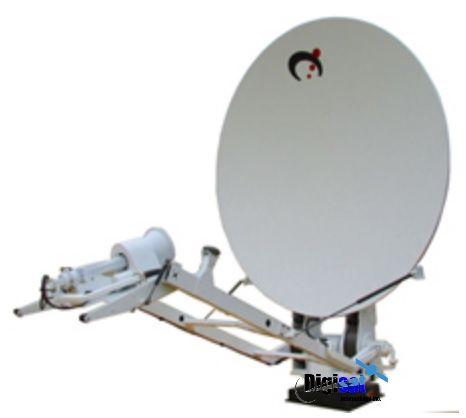

Sat-Lite Peloris 2011 2.0M Motorized Vehicle Mounted VSAT Antenna

2011 2.0M SNG Vehicle Mount VSAT Antenna

The Sat-Lite 2011 Peloris vehicle mounted SNG VSAT is a robust and light-weight precision antenna designed for the most demanding high power broadband and uplink video transmission applications. It features a carbon fiber composite reflector and aluminum back-beam structure designed to provide exceptional performance in a lightweight package. The custom-designed elevation-over-azimuth cable drive pedestal provides superior stiffness with minimal backlash and maintenance.

Additionally, the Peloris 2011 series antenna has a long focal length geometry (0.8 F/D) designed to meet international performance specifications for commercial or military applications and is available in C-, Ku-, Ka or X-Band frequencies. Multiple feed configurations are also available for 2-port, 3-port, and 4-port applications. A host of amplifier mounting packages for Paradise Datacom, CPI, Xicom and more, or waveguide installations are also standard product offerings.

Key Features

 Intelsat and Eutelsat Compliant

 Multi-Band C-, X-, Ka- or Ku-Band Capable

 Integrated Controller with Tracking Options Available

 Carbon Fiber Reinforced Polymer Structure – Lightweight and Stiff

 Low Profile and SpaceOptimizing Stowed Configuration

 High Gain / Low Cross Pol Design

 Superior Pointing Stability in Wind

 Multiple Integration Options

 Excellent Reliability

 Minimal Maintenance
