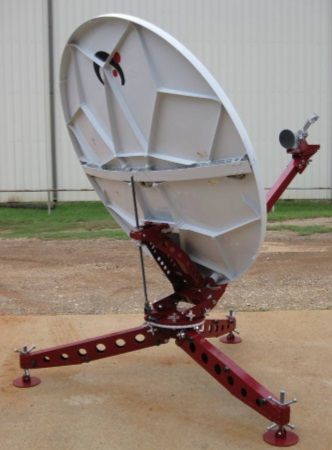

Sat-Lite Celero 1223 1.2 Meter Manual Flyaway Transportable VSAT Antenna System
Intelsat Compliant, Multi-Band Capable, RC300 Satellite Companion option, Cost Effective
1223 1.2M Quick Deployable Antenna
The Sat-Lite 1223 1.2 meter Flyaway VSAT Antenna System provides exceptional RF performance in a compact and highly mobile package. The Celero 1.2M Flyaway VSAT Antenna has a 2 or 4 piece lightweight segmented reflector that's designed to produce great RF characteristics while still providing easy assembly. The 1.2m flyaway antenna has a low profile elevation-over-azimuth tripod pedestal assembly that provides a very rigid, modular assembly with simple setup and operation. The Sat-Lite Model 1223 flyaway VSAT antenna system has options available for C-, X- and Ku-Band frequencies and offers several RF electronic equipment mounting configurations. Custom fit mobile flyaway shipping cases are included with the system.
Key Features
Intelsat Compliant
Multi-Band Capable Multiple Integration Options Compact Packaging Superior Stability Excellent Reliability Minimal Maintenance Less than 15 min Assembly Time Captive Hardware
|
Electrical Specifications |
|
Rx Tx 2 Port C Band Linear Feed |
Rx Tx 2 Port C Band Circular Feed |
Rx Tx 2 Port X Band Circular |
Rx Tx2 Port Cross Pol Ku Band Linear / Standard Feed |
|
Frequency (GHz) |
|
3.625 -4.20 5.85 - 6.425 |
3.625 -4.20 5.85 - 6.425 |
7.25 -7.75 7.9 - 8.4 |
10.70 - 12.75 13.75 - 14.5 |
|
Gain (Midband, dBi) |
|
31.9 35.9 |
31.9 35.9 |
37.2 37.8 |
41.7 43.2 |
|
Noise Temperature (°K) |
|
||||
|
|
10 deg El |
45 |
54 |
79 |
45 |
|
|
20 deg El |
40 |
47 |
61 |
31 |
|
Axial Ratio |
|
|
3.0 dB 2.3 dB |
1.5 dB 1.5 dB |
|
|
Cross Pol |
|
||||
|
|
On Axis |
-30 dB -30 dB |
-15.3 dB -17.5 dB |
-21.3 dB -21.3 dB |
-30 dB -30 dB |
|
|
in 1 dB contour |
-26 dB -26 dB |
-15.3 dB -17.5 dB |
-21.3 dB -21.3 dB |
-30 dB -30 dB |
|
Sidelobe Compliances |
|
IESS 601 Std G |
IESS 601 Std G |
Meets ITU 580 |
Meets ITU 580 |
|
VSWR |
|
1.50:1 1.30:1 |
1.50:1 1.30:1 |
1.30:1 1.30:1 |
1.50:1 1.30:1 |
|
Isolation |
|
||||
|
Tx/Rx |
|
-60 dB 0 dBm input |
-60 dB 0 dBm input |
-110 dB 0 dBm input |
-110 dB 0 dBm input |
|
Rx/Tx |
|
0 dBm input -50 dB |
0 dBm input -50 dB |
0 dBm input -110 dB |
0 dBm input -35 dB |
|
Mechanical / Environmental Specifications |
|
|
Reflector |
1.2 meters (47.2 in) Glass Fiber Reinforced Polyester |
|
Reflector Configuration |
2 or 4 Piece Segmented Single Offset |
|
Antenna Travel Azimuth Elevation Polarization |
360° continuous with fine adjust0 - 90° of reflector bore sight ± 90° |
|
Packaging (2 Cases) Pedestal Case (Pelican Style) Reflector Case |
37.5" x 27.5" x 14.5" (95 lbs)30" x 27" x 17" (85 lbs) - 4 Piece Option 51" x 31.5" x 13.5" (75 lbs) - 2 Piece Option |
|
Temperature Operational Survival |
-30 to 60°C (-22 - 140°F) -40 to 70°C (-40 - 158°F) |
|
Winds Operational |
30 mph Gusting to 45 mph ( 48 kph G 72 kph) |
|
Integration Feedboom Mounted 1 |
30 lbs |
|
Rain Operational Survival |
4 in/h (10 cm/h)6 in/h (15 cm/h) |
|
Relative Humidity |
0 - 100% |
|
Solar Radiation |
360 btu/h/ft2 (1000 Kcal/h/m2) |
|
Radial Ice (survival) |
1 in (25.4 mm) |
|
Corrosive Atmosphere |
As encountered in coastal and/or industrial areas |
Commercial and Military Satellite Communications, Broadband Satellite Internet, Disaster Recovery Communications
