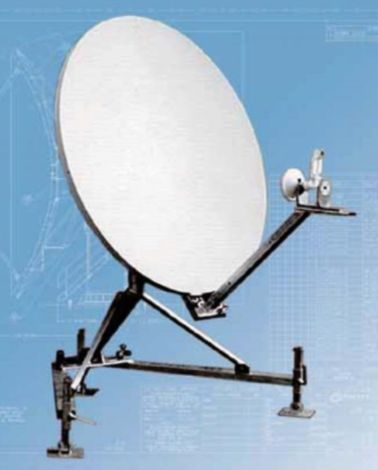

CPI SAT Model 1126 1.2m Rugged Deploy Flyaway Antenna System

Model 1126 1.2 Meter Quick Deployable VSAT

The CPI SAT (formerly GD Satcom Technologies & Prodelin) 1126 is a lightweight 1.2-meter (48-inch) Rugged Deploy antenna that's designed for worldwide transmit and receive operation in C, X, Ku and Ka-band. These portable antennas consist of Precision Compression Molded reflectors and galvanized steel tripod base mounts. This results in a durable antenna with superior stiffness and high performance under wind loading conditions. The unique shape and the accurate reflector surface provide good sidelobe and cross-polarization performance. Repeatability is maintained with precision registration of the reflector segment(s) and the feed support structure. The antenna system includes either a single piece or two-segment SMC compression molded reflector assembly. The complete 1.2-meter antenna system, with two-piece reflector and a single feed, is packaged in multiple portable cases or reusable wooden crate, depending on options ordered.

Features

• Precision compression molded offset reflector (two-segment optional)
• Compact galvanized steel tripod
• Transport cases available
• One-person assembly in less than 5 minutes
• Captive hardware/fasteners
• No tools required
• Quick adjust positioner

Options

• Paint/finishes
• Case upgrades
• Multiple feeds - C, X, Ku and Ka-band
