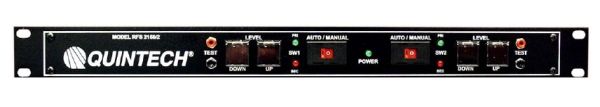

Quintech Electronics RFS 2150 1RU IF Redundancy Dual RF Sensing Switch
950-2150 MHz, 2 Inputs (Primary, Secondary) / 1 Output (per switch), 75 Ohm
RFS 2150 1RU IF Redundancy Dual RF Sensing Switch
The Quintech Electronics RFS21502FAA000 RF Sensing Switch provides two (2x1) sensing switches which detect the presence of RF (primary) and provides the ability to switch to backup (secondary) on loss of primary. Each of the sensing switches utilize DPDT relays that terminate the off path with 75 Ω. The primary RF input is filtered, amplified, and detected to operate the relays. When the input level is above the preset threshold, which is adjustable using the front panel up/down pushbuttons, the relays are de-energized and the primary signal path is selected. When the signal falls below the preset threshold, the relays are energized and the secondary signal path is selected. A front panel slide switch has been included to allow manual override to the secondary input. The rear panel has been equipped with relay contact alarm outputs and a remote override via contact closure.
Features & Benefits
- L-band redundancy switches provide automatic backup for signal continuity thereby maintaining your revenue stream
- Facilitates scheduled maintenance activity with no downtime
- Eliminates the need for emergency service, permitting maintenance on a managed schedule
- Rear panel mounted barrier strip provides the interface for a contact closure summary alarm and remote override
- The threshold is adjustable via front panel for adjustment sensitivity and flexibility
- Ideal for redundancy switching applications for failed LNB’s, up converters, down converters, antenna rain fade and unmanned facilities
- Ultra-reliable 1:1 redundancy for backup of fiber links
- The RFS 2150/2 with serial control provides the ability to remotely control the RF sensing switches via RS232
- Broadband RF A/B Terminating Switches SRF1750AF1K000
- Spare Power Supplies (16 Port) (100-240 VAC Auto-ranging)
- 24VDC: RSUBRPS2RU24V6.0ARC
- 18VDC: RSUBRPS2RU18V4.5ARC

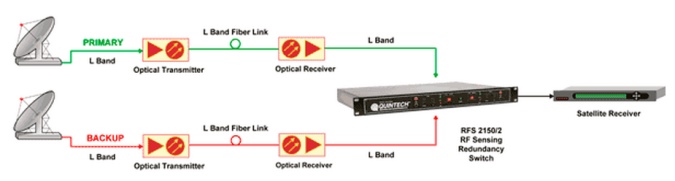

Typical Configuration Diagram
Overall RF Range: |
950-2150 MHz |
Inputs/Outputs: |
2 Inputs (Primary, Secondary) / 1 Output (per switch) |
Impedance: |
75 Ω |
Detected Level: |
-60 dBm to -20 dBm, adjustable |
RF Switching Response Time: |
1.1 sec. (max.) |
Insertion Loss: |
2.5 dB + 1 dB |
Frequency Response: |
+1.0 dB |
Input Return Loss: |
12 dB |
Output Return Loss: |
12 dB |
Isolation: |
40 dB |
Manual Override: |
Front panel mounted slide switch |
Remote Override: |
Form ‘C’ contact closure |
Threshold Adjust: |
Front panel mounted up/down pushbuttons |
Power Requirements: |
100-240 V~, 60/50 Hz |
Power Consumption: |
21 W (excluding LNB power) |
RF Connectors: |
Type F, 75 Ω |
Mechanical: |
1 RU (1.75" H x 19" W x 14" D) |
Weight: |
7.2 lbs. gross (boxed), 4.6 lbs. net |
Provides two (2x1) RF detector switches in a single RU enclosure
