Quintech Electronics SRX 2150 Modular L-Band RF Routing Switch (950-2150 MHz)
950 to 2150 MHz, 16 inputs, expandable up to 128
SRX 2150 Modular L-Band RF Routing Switch (950-2150 MHz)
This product has reached end of life and is no longer available. Please contact us for a suitable replacement.
Quintech SRX 2150 is a routing switch that is ideal for monitoring applications. Spanning a frequency range of 950-2150 MHz, the system can be expanded in 16x1 modules up to a maximum configuration of 128x1. The SRX 2150 system greatly enhances system reliability by eliminating the need for patch panels and repetitive mechanical connections. Controllable either locally thru the front panel keypad or remotely thru either an RS-232 or RS-422 computer interface, the SRX 2150 system is compatible with most monitoring and control systems.
Features & Benefits
SRR & SRX RF Routing Switches greatly enhance monitoring reliability by eliminating patch panels and repetitive mechanical connections.
SRR 070/2x1 provides an A/B switch capable of passing ASI signals.
Allow for regularly scheduled monitoring of network components via spectrum analyzer and other test equipment. .
SRX RF Routing Switches grow with your needs from 16x1 up to 128x1.

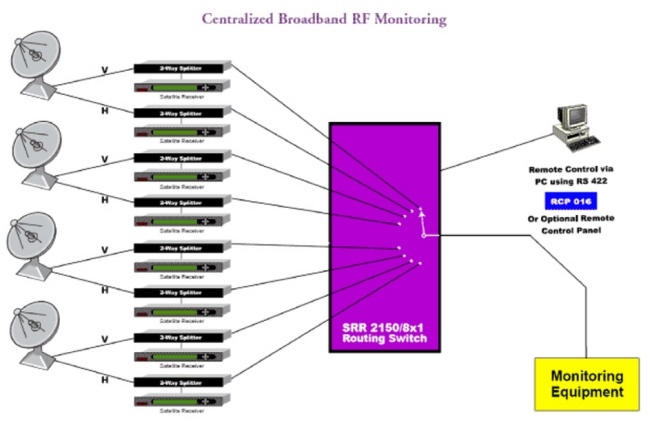

SRX2150 System Configuration
|
Inputs: |
16 (expandable to 128) |
|
Outputs: |
1 |
|
Frequency: |
950-2150 MHz |
|
Impedance: |
75 __ |
|
Max. Total Operating Input Power: |
+10 dBm (each input) |
|
Insertion Loss: |
0 dB + 2 dB @ 1550 MHz |
|
Frequency Response: |
+ 4 dB |
|
Isolation: |
40 dB min. |
|
Input Return Loss: |
12 dB |
|
Output Return Loss: |
10 dB |
|
RF Connectors: |
Type "F", 75 __(BNC optional) |
|
Control: |
Local and remote via Quintech's MCP 128/(8x1) control module |
|
Control Mod. Connectors: |
D-9 Female (Control In), D-9 Female (Control Out) RJ45 (Ethernet) |
|
Expansion Mod. Connectors: |
D-9 Female (Control In), D-9 Female (Control Out) |
|
Power Requirements: |
100-240 VAC, 50/60 Hz |
|
Power Consumption: |
5W per box |
|
Mechanical: |
1 RU (1.75"H x 19"W x 18.5"D), 7.0 lbs. |
Signal routing capability for broadband cable frequencies from 950 to 2150 MHz
