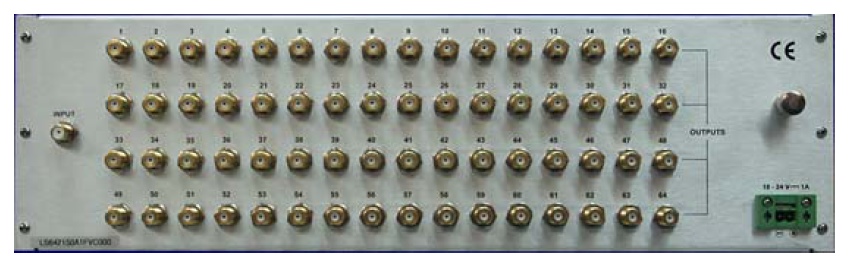

Quintech Electronics LS64 2150A 64-Way Active L-Band Splitter (950-2150 MHz)

The LS642150A1FVC000 is a commercial quality 64-way active splitter that meets strict level, match, and loss specifications achieved through the use of Quintech's proprietary microstrip and SMT technology. It operates over the 950-2150 MHz frequency range and permits signal splitting with zero loss, eliminating the need for external distribution amplifiers. The LS642150A1FVC000 provides LNB DC power insertion that can be switched on or off via the front panel mounted slide switch. (See LNB power specifications below)

Note: All unused RF output ports must have 75 Ω terminations.

Low Loss

The LS 2150A Series commercial quality active (zero loss) L-band splitters meet strict level, match, and loss specifications achieved through the use of Quintech's proprietary microstrip and SMT technology. They operate over the Satellite L-band (950-2150 MHz) frequency range and enable the splitting of L-band RF signals with repeatable performance over the entire frequency range and across all I/O ports

Features

Convenient, centralized rack mount designs improve cable management.

Microstrip design provides better performance and reliability.

Larger configurations eliminate cascaded combiners for better performance.

Active (zero loss) combiners allow for ease in RF budget design.

Custom configurations for optimization of rack space and increased flexibility.

Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.

Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.
