Quintech LTE 3000 Passive Full Fan-Out Matrix Switch
Perfect for Broadcast and Teleport facility applications, passive non-blocking
LTE 3000 Passive Full Fan-Out Matrix Switch
This product has reached end of life and is no longer available. Please contact us for a suitable replacement.
Non-Blocking Matrix.
Highly Versatile

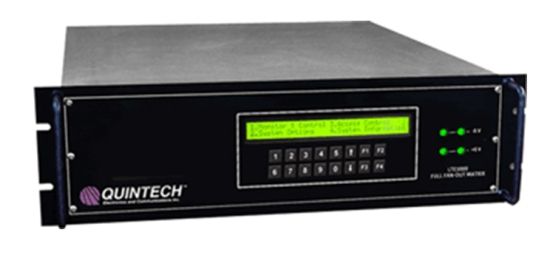

The LTE 3000 is a passive full fan out matrix switch which allows any of the 16 inputs to be routed to any or all outputs. The operating frequency range of the switch covers 700 Mhz to 3 Ghz. It is perfect for use in LTE, Wimax and 4G test applications. It automates test labs by replacing cumbersome patch panels and can be controlled easily via the front panel or remotely via a web browser interface. The basic configuration for the LTE 3000 is a 16x16 switch which can be easily expanded to larger configurations. The LTE 3000 meets strict specifications required in a lab environment to ensure no signal degradation.
Key Features
Designed specifically for use in LTE, WiMax and 4G test applications
Operating frequency range covers 700MHz to 3000Ghz
Automated testing process by replacing cumbersome patch panels
Easily expandable to meet changing test lab environment
High performance to meet signal specifications in a test lab environment
Typical Application configuration for the LTE series switches:
The LTE series matrix switches are available in two different configurations- LTE 3000 16x16 and LTE 2800 32x32:
Quintech Matrix Switch Application Guide
Digisat can also provide turnkey system design, engineering and installation for any Quintech Matrix Switch product. Please contact us today for more details.
Specifications |
|
|
Operating Frequency: |
700-3000 MHz |
|
Attenuation: |
0 to 30 dB attenuation in 1 dB steps |
|
Impedance: |
50 n |
|
P1dB: |
> +40 dBm min. |
|
OIP3 |
> +60 dBm min. |
|
RF Input Power (no damage): |
+30 dB / +23 dBm @ output |
|
Frequency Response: |
+ 3 dB |
|
|
+ 0.5 dB over any 36 MHz channel |
|
Isolation (input-to-input): |
60 dB min. |
|
Isolation (output-to-output, same input): |
30 dB min. |
|
Isolation (output-to-output, different input): |
60 dB min. |
|
Isolation (input-to-output): |
60 dB min. |
|
Insertion Loss: |
22 dB typ., 24 dB max. @ 3000 MHz & 0 dB attenuation |
|
Input Return Loss: |
13 dB |
|
Output Return Loss: |
15 dB |
|
Switching Speed: |
< 20 microseconds switching time, 90 milliseconds processing time |
|
VSWR: |
1.4:1 typ., 1.5:1 min. |
|
Configuration: |
16 inputs / 16 outputs |
|
RF Connectors: |
Type N, 50 n |
|
Power Requirements: |
100-240 VAC autoranging, 50/60 Hz |
|
Power Consumption: |
17 W |
|
Local Control: |
Front panel keypad with LCD display |
|
Remote Control: |
TELNET or TCP/IP via customer-supplied PC |
|
Software: |
PC-compatible operating software and protocol (included with the |
|
|
system) |
|
Mechanical: |
3 RU (5.25" H x 19" W x 24" D) |
|
Weight: |
38.5 lbs. gross (boxed). 32 lbs. net |
|
Certifications: |
CE, NRTL/TUV, FCC Part 15 |
Satellite Teleports, Broadcast Video, Content Distribution
