SRB 2000 Bi-Directional RF Routing Matrix Switch

This product has reached end of life and has been replaced by the Quintech NEXUS series

Based on Quintech's SRM series of modular RF switching systems, the SRB 2000 was developed specifically for deployment in advanced AMPS/PCS wireless systems. The SRB 2000 is capable of routing any RF signal between 800 and 2170 MHz simultaneously and bi-directionally (full duplex). This allows any number of 16A ports to be routed to any number of 16B ports, and vice versa. The system is controllable either locally via the front panel keypad or remotely via the RS-232 computer interface. The rear panel design facilitates structured cable routing, thereby eliminating confusing tangles and bundles of cables.

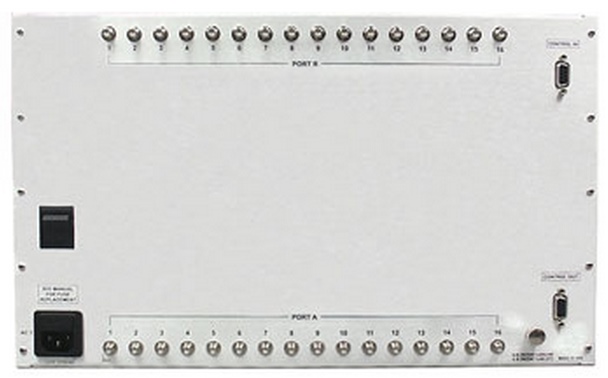

quintech SRB 2000 rf router back view

Features & Benefits

Designed specifically for ATE applications for testing AMPS and PCS hand-off simulation

Provides full duplex, bi-directional simultaneous signal path routing capabilities

Provides flexibility in simulation of multiple cell site hand off applications

Replaces cumbersome patch panel configurations

Available in several configurations from a 16x16 to 256x256

Expandable to meet ever changing test load requirements, easily expandable by adding additional modules

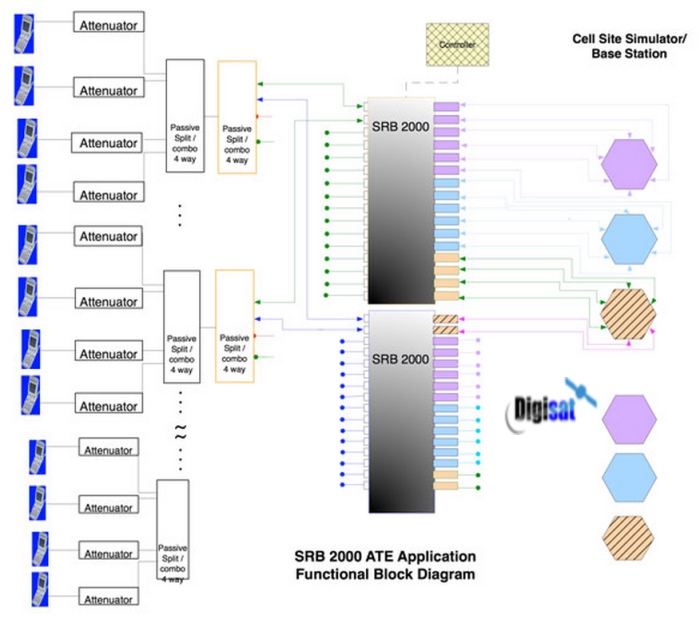

SRB2000 System Configuration

Technical Specifications

Frequency:	820-960 MHz (AMPS) and 1900-2170 MHz (PCS)
Impedance:	50 Ω
Max. Total Operating Input Power:	-10 dBm/port
Insertion Loss:	33 dB
Frequency Response:	+2 dB
Isolation:	65 dB
Return Loss:	> 11 dB
Input Ports:	16
Output Ports:	16
RF Connectors:	SMA, 50 Ω (BNC, N optional)
Power Requirements: Local Control:	100-240 VAC, 60/50 Hz Front panel keypad with LCD display
Remote Control:	RS-232 via customer-supplied PC (RS422/485, TCP/IP optional)
Mechanical:	6 RU (10.5" H x 19" W x 20" D)

Applications

Routes any RF signal between 800 and 2170 MHz simultaneously and bi-directionally (full duplex)
