Quintech Electronics SFM 200 Full Fan-In RF Matrix Switching System
Frequency range from IF-Band 5 MHz to 200 MHz and Satellite L-band 950-2150 MHz
SFM-200 Full Fan-In RF Matrix Switching System
This product has reached end of life and has been replaced by the Quintech QFM Series
The Quintech Electronics SFM 200 is a full fan-in matrix switch that allows multiple inputs carrying RF signals to be routed and combined to a single output. The system utilizes patented stack-and-tier technology which offers ultra-reliable, high-performance, in a compact, modular design. This greatly reduces the size and complexity of the system while greatly enhancing the system's reliability by eliminating the need for patch panels and repetitive mechanical connections.
Monitor & Control

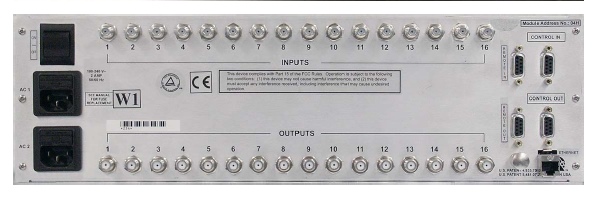

The system is controllable either locally via the front panel keypad or remotely via computer and is compatible with most monitoring and control systems. The rear panel design facilitates structured cable routing, thereby eliminating confusing tangles and bundles of cables.

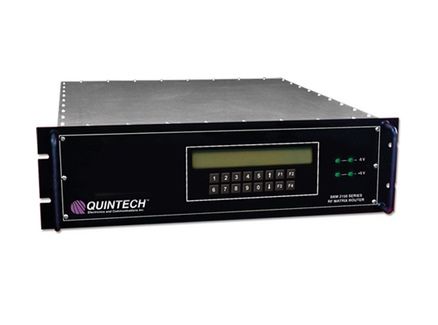

Full Fan In and Out Matrix Switch System shown here with the SRM 2150 Splitter
Benefits
Operating frequency ranges for IF (5-200 MHz) & Satellite L-band (950-2150 MHz)
SFM RF Matrix Switch solutions greatly enhance system reliability by eliminating patch panels and or combiners
Controllable locally via front panel keypad or remotely via computer and are compatible with most monitoring and control systems, freeing up staff to attend to more critical tasks
Permit immediate routing of alternate signal sources
Solid state switches provide seamless (nanoseconds) switching speeds.
Maximize use of existing equipment with automated switching and scheduling; no need for dedicated equipment
|
Frequency: |
5-200 MHz |
|
Insertion Loss: |
0 + 1.5 dB |
|
Impedance: |
75 Ω or 50 Ω |
|
P1dB: |
-5 dBm (each input) |
|
Frequency Response: |
+ 1 dB |
|
Isolation (input-to-input): |
55 dB |
|
Isolation (output-to-output): |
55 dB |
|
Isolation (input-to-output): |
55 dB |
|
Noise Figure: |
17 dB |
|
Input Return Loss: |
15 dB |
|
Output Return Loss |
14 dB |
|
Control Response Time: |
1.26 msec. |
|
Switching Speed: |
40 nsec. |
|
RF Connectors: |
Type F, BNC 75, BNC 50, SMA, or N |
|
Power Requirements: |
100-240 V~, 50/60 Hz. Dual AC inputs and dual internal PSUs for redundancy. |
|
Power Consumption: |
39 W |
|
PC Remote Control: |
RS-232, RS-422/485, or TCP/IP 10 BaseT via customer-supplied PC, SNMP, TELNET |
|
Inter-Module Control Data: |
Synchronous serial |
|
Mechanical: |
3 RU (5.25" H x 19" W x 20" D) |

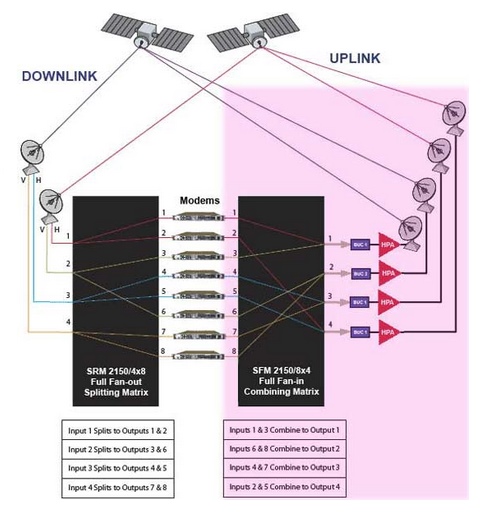

Content Delivery via Satellite, RF Matrix Switching Applications
