Quintech Electronics MRM 2500 Military Grade Broadband RF Matrix Switch
Ideal for Military Applications and Government Communications Systems
MRM 1100 Broadband RF Matrix Switch (20-1100 MHz)
This product has reached end of life and is no longer available. Please contact Digisat for a suitable replacement.
** The MRM Series L-band Matrix Router is currently available ONLY in a custom application. Please contact Digisat today with your application requirements **
The Quintech MRM 2500 is a matrix switch and switching subsystem that allows any of 4 to 16 inputs carrying RF signals to be
routed to any of 4 to 16 outputs. The system utilizes patented stack-and-tier technology which offers ultra-reliable, highperformance,
in a compact, modular design. This greatly reduces the size and complexity of the system while greatly
enhancing the system's reliability by eliminating the need for patch panels and repetitive mechanical connections. The
system is controllable either locally via the front panel keypad or remotely via computer and is compatible with most

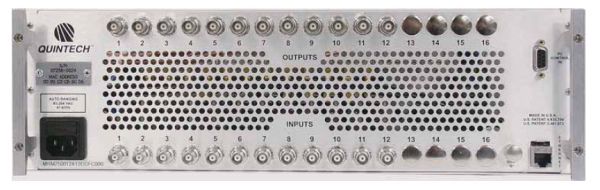

monitoring and control systems. The rear panel design facilitates structured cable routing, thereby eliminating confusing
tangles and bundles of cables.
Features
- Operating frequency range for IF (20-200 MHz) broadband (20-1000 MHz & 20-1100 MHz) and Satellite Extended L-band (800-2500 MHz) including AMPS, PCS & GSM bands
- Military grade RF matrix features extreme linearity for high operating input power levels and survivability power levels for demanding defense electronics & communication applications
- Greatly enhances system reliability by eliminating patch panels
- Controllable locally via front panel keypad or remotely via computer and are compatible with most monitoring and control systems, freeing up staff to more critical tasks.
- Permit immediate routing of alternate signal sources
- Solid-state switching elements provide seamless (nanoseconds) switching speeds
- Maximize use of existing equipment with automated switching and scheduling; no need for dedicated equipment
- MRM series RF matrix switches offer standard power redundancy and high isolation for optimum system reliability
- Easy access front panel keypad and LCD display provides convenient cross point identification
Typical Application configuration for the MRM series switches:
Quintech Matrix Switch Application Guide:
|
Frequency: |
800-2500 MHz |
|
Impedance: |
50 n |
|
Max. Survivable Input Power: |
+20 dBm |
|
Insertion Loss/Gain: |
0 + 3 dB |
|
1 dB Compression Input: |
+15 dBm |
|
3rd/2nd Order Output Intercept Point: |
+25 dBm/+30 dBm |
|
Frequency Response: |
+ 3 dB |
|
Isolation (input-to-input): |
> -45 dB |
|
Isolation (output-to-output, different input): |
> -55 dB |
|
Isolation (output-to-output, common input): |
> -40 dB |
|
Isolation (input-to-output): |
> -45 dB |
|
Input Return Loss: |
11 dB |
|
Output Return Loss: |
10 dB |
|
Noise Figure: |
< 14 dB (800-2200 MHz) typ. |
|
|
< 16 dB (2200-2500 MHz) typ. |
|
RF Connectors: |
BNC, 50 n |
|
Power Requirements: |
Auto-ranging 100-240 V~, 50/60 Hz. N+1 internal PSU’s for |
|
|
redundancy. |
|
Power Consumption: |
450 W (for 16x16 configuration) |
|
Local Control: |
Front panel keypad with LCD display |
|
PC Remote Control: |
RS-232, RS-422/485, or ETHERNET via customer-supplied PC |
|
Mechanical: |
3 RU (5.25" H x 19" W x 24" D) |
|
Weight: |
32.5 lbs. |
|
Software: |
Basic PC-compatible operating software and system protocol included |
|
|
with system |
|
Available Configurations: |
4x4, 4x8, 4x12, 4x16, 8x4, 8x8, 8x12, 8x16, 12x4, 12x8, 12x12, 12x16, |
|
|
16x4, 16x8, 16x12, 16x16 |
