Quintech Electronics RFM 2500 RF Routing Monitoring Switch (5-2500 MHz)
Frequency range covers all DOCSIS 3.1 to 1200 MHz and to future 1800 MHz frequencies
RFM 2500 (5-2500 MHz) RF Routing Monitor

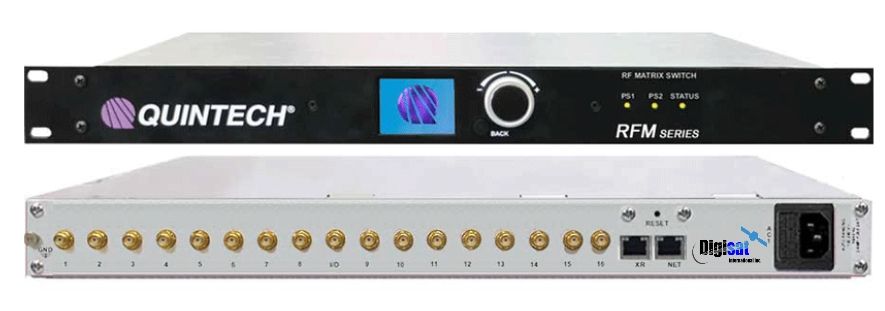

The Quintech RFM250016X1LF000 is a routing switch that transparently passes RF signals from 5 to 2500 MHz. Its proprietary design provides lossless switching while minimizing noise figure through the switch. It’s ultra-compact design fits 16x1 in a 1 RU chassis and the switches can be cascaded to expand to 256x1. The RFM is used for centralized test and measurement applications and monitoring large numbers of RF signals.
Features
- 950-2500 MHz frequency range covers satellite extended L-band
- Flexible Configurations (16x1 or 1x16 expandable up to 256 inputs or outputs using multiple modules)
- Web Browser Interface for easy configuration and switching
- Automates testing or monitoring of multiple devices to a shared analyzer
- Adjustable Output Gain
- Gigabit Ethernet Port Remote control using Web Browser, API, or SNMP (v2c, v3)
|
Specifications:* |
RFM 2200 |
RFM 2500 |
|
Operating Frequency: |
5-2500 MHz |
950-2500 MHz |
|
Configuration: |
16x1 (Up to 256x1 with Additional Modules) |
|
|
Impedance: |
75 Ω |
50 Ω, 75 Ω |
|
P1dB: |
+5 dBm |
+5 dBm |
|
OIP3: |
15 dBm |
|
|
Insertion Loss: |
0 dB @±1 dB |
0 dB @±2 dB |
|
Isolation: |
50 dB |
50 dB |
|
Input Return Loss: |
13 dB |
13 dB |
|
Output Return Loss: |
14 dB |
14 dB |
|
Noise Figure: |
< 6 dB |
<13 dB |
|
RF Connector: |
SMA |
SMA |
|
Power Requirements: |
100-240 VAC, 50/60 Hz |
|
|
Power Consumption: |
9 W |
9 W |
|
Remote Control: |
Ethernet Port: TCP/IP, Web Browser Interface or SNMP |
|
|
Control Module Connectors: |
RJ45, XR Bus |
|
|
Expansion Module Connectors: |
XR Bus |
|
|
Mechanical: |
1RU: 1.75” H x 19” W x 18.5” D |
|
- Remote testing of CATV headends and monitoring of upstream and downstream paths
- Automate testing of multiple devices under test to shared analyzer
