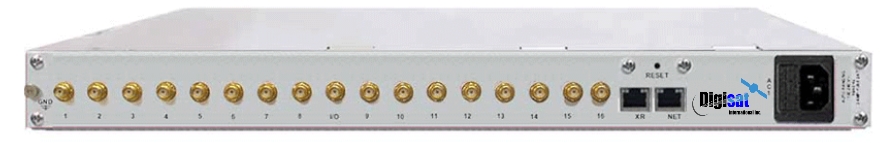

Quintech Electronics RFM 2150 RF Routing Monitoring Switch (950-2150 MHz)
Frequency range covers L-Band 950 MHz to 2150 MHz
RFM 2150 (950-2150 MHz) RF Routing Monitor
The Quintech RFM 2150 is a routing switch that transparently passes RF signals from 5 to 1800 MHz. Its proprietary design provides lossless switching while minimizing noise figure through the switch. It’s ultra- compact design fits 16x1 in a 1 RU chassis and the switches can be cascaded to expand to 256x1. The RFM215016X1LS000 is used for centralized test and measurement applications and monitoring large numbers of RF signals.
Features
- L-Band 950-2150 MHz frequency range
- Unity gain switching with low noise figure
- Pay as you grow, expandable in the field to 256x1
- Remote control over TCP/IP via open source API
- Web browser interface for easy setup and configuration
|
Specifications:* |
RFM 1800 |
RFM 2150 |
|
Operating Frequency: |
5-1800 MHz |
950-2150 MHz |
|
Configuration: |
16x1 (Up to 256x1 with Additional Modules) |
|
|
Impedance: |
75 Ω |
50 Ω, 75 Ω |
|
P1dB: |
+3 dBm |
+4.5 dBm |
|
OIP3: |
17 dBm |
|
|
Insertion Loss: |
0 dB @±1 dB |
0 dB @±2 dB |
|
Isolation: |
60 dB |
45 dB |
|
Input Return Loss: |
14 dB |
12 dB |
|
Output Return Loss: |
14 dB |
12 dB |
|
Noise Figure: |
< 6 dB |
<13 dB |
|
RF Connector: |
F-Type |
F-Type, SMA |
|
Power Requirements: |
100-240 VAC, 50/60 Hz |
|
|
Power Consumption: |
15 W |
6 W |
|
Remote Control: |
Ethernet Port: TCP/IP, Web Browser Interface or SNMP |
|
|
Control Module Connectors: |
RJ45, XR Bus |
|
|
Expansion Module Connectors: |
XR Bus |
|
|
Mechanical: |
1RU: 1.75” H x 19” W x 18.5” D |
|
- Remote testing of CATV headends and monitoring of upstream and downstream paths
- Automate testing of multiple devices under test to shared analyzer
