MRM 1100 Broadband RF Matrix Switch (20-1100 MHz)
This product has reached end of life and is no longer available. Please contact Digisat for a suitable replacement.
**The MRM Series L-band Matrix Router is currently available ONLY in a custom application. Please contact Digisat today with your application requirements**

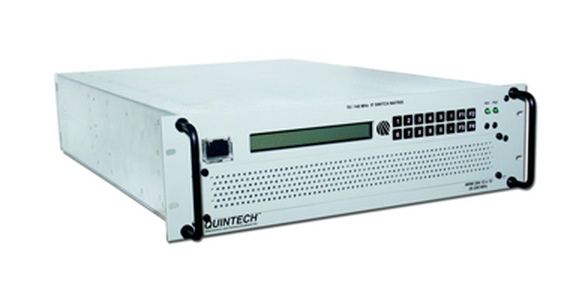

The Quintech MRM 1100 is a broadband RF matrix switch and switching subsystem that allows any of 4 to 128 inputs carrying broadband (20-1100 MHz) RF signals to be routed to any of 4 to 128 outputs. The system utilizes patented stack-and-tier technology which offers ultra-reliable, high-performance, in a compact, modular design. This greatly reduces the size and complexity of the system while greatly enhancing the system's reliability by eliminating the need for patch panels and repetitive mechanical connections. The system is controllable either locally via the front panel keypad or remotely via computer and is compatible with most monitoring and control systems. The rear panel design facilitates structured cable routing, thereby eliminating confusing tangles and bundles of cables.
Features & Benefits:
- Operating frequency ranges for Broadband (20-1100 MHz)
- Military grade RF matrix features extreme linearity for high operating input power levels and survivability power levels for demanding defense electronics & communication applications
- Greatly enhances system reliability by eliminating patch panels
- Controllable locally via front panel keypad or remotely via computer and are compatible with most monitoring and control systems, freeing up staff to more critical tasks.
- Permit immediate routing of alternate signal sources
- Solid-state switching elements provide seamless (nanoseconds) switching speeds
- Maximize use of existing equipment with automated switching and scheduling; no need for dedicated equipment
- MRM series RF matrix switches offer standard power redundancy and high isolation for optimum system reliability
- Easy access front panel keypad and LCD display provides convenient cross point identification
Typical Application configuration for the MRM series switches:
Quintech Matrix Switch Application Guide
|
Frequency: |
20-1100 MHz |
|
Impedance: |
50 Ω |
|
Max. Survivable Input Power: |
+30 dBm |
|
Insertion Loss: |
0 dB + 2 dB |
|
Frequency Response: |
+ 3 dB |
|
1 dB Compression Input: |
> +12 dBm |
|
3rd/2nd Order Output Intercept Point: |
> +25 dBm/+45 dBm |
|
Isolation (input-to-input): |
> 60 dB |
|
Isolation (output-to-output, different input): |
> 60 dB |
|
Isolation (output-to-output, common input): |
> 45 dB |
|
Isolation (input-to-output): |
> 55 dB |
|
Input Return Loss: |
13 dB |
|
Output Return Loss: |
14 dB |
|
Noise Figure: |
< 14 dB |
|
RF Connectors: |
BNC, 50 Ω |
|
Power Requirements: |
Autoranging 100-240 VAC, 50/60 Hz. N+1 internal PSUs for redundancy. |
|
Power Consumption: |
400 W (16x16 configuration) |
|
Local Control: |
Front panel keypad with LCD display |
|
PC Remote Control: |
RS-232, RS-422/485, or ETHERNET via customer-supplied PC |
|
Mechanical: |
3 RU (5.25" H x 19" W x 24" D) |
|
Software: |
Basic IBM-compatible operating software and system protocol included with system |
Broadcast facilities, Cable Headends, Broadcast Video and Content Distribution
