Norsat 8225I Series DRO C-Band (4.5 to 4.8 GHz) Digital LNB
4.50 - 4.80 GHz, 5.95 GHz L.O. Frequency, Output: 1150 to 1450 MHz, 25K Noise Temp, L.O. Stability ±250 kHz
8225I C-Band DRO LNB
The Norsat 8225i Series C-Band DRO LNB has a local oscillator frequency of 5.95 GHz and operates from 4.50 to 4.80 GHz. The 8225i LNB features a groundbreaking 25 K noise temperature rating. This DRO Norsat C-Band LNB has a CPR229 waveguide input and offers outstanding Local Oscillator (L.O.) stability of ±250 kHz. F connector or Type-N Output.
LNB Models
8225IF - F connector RF output
8225IN - Type-N connector RF output

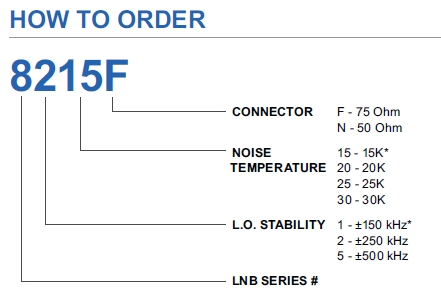

Norsat 8225i Ordering Information

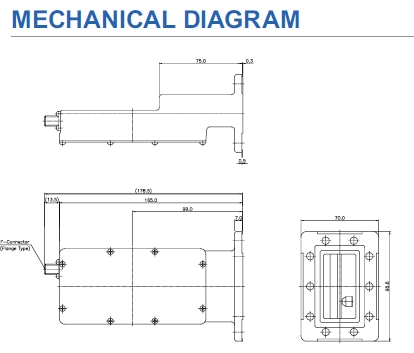

Outline Diagram
TYPICAL SPECIFICATIONS
Noise temperature 15K to 30K
depending on model number
L.O. stability ±150 kHz to ±500 kHz
(over temperature excl offset) depending on model number
Phase noise -65 dBc/Hz at 1kHz
(SSB) -80 dBc/Hz at 10kHz
-95 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.2 : 1
FREQUENCY BANDS AVAILABLE
Typical service 8000I
Input frequency (GHz) 4.50 to 4.80
L.O. frequency (GHz) 5.95
Output frequency (MHz) 1150 to 1450
VSAT, Tx/Rx, TVRO, Maritime
