Norsat 8530N C-Band (3.4 to 4.2 GHz) Digital DRO LNB (N connector)
N-type connector RF output, 30K Noise Temp, ±500 kHz LO stability, 3.4 - 4.2 GHz, 5.15 GHz L.O. Frequency, 950 to 1750 MHz output
8530N DRO C-Band
The Norsat 8225R has reached end of life and has been replaced by the Norsat 5250RF. Please contact Digisat for more information.
The Norsat 8530N C-Band DRO LNB has a local oscillator frequency of 5.15 GHz and operates from 3.40 to 4.20 GHz. The 8530N LNB offers a 30K noise temperature configuration. This Norsat DRO C-Band LNB has a CPR229 waveguide input and provides Local Oscillator stability of ±500 kHz. N-type connector L-Band RF Output.
Norsat 8530N Ordering Information

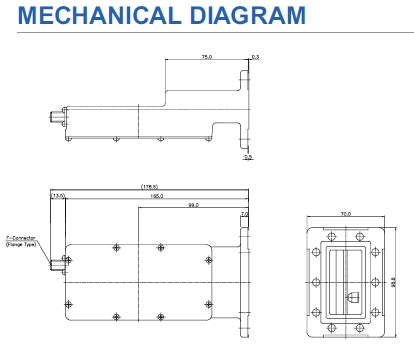

DRO LNB Outline Diagram
TYPICAL SPECIFICATIONS
Noise temperature 15K to 30K
depending on model number
L.O. stability ±150 kHz to ±500 kHz
(over temperature excl offset) depending on model number
Phase noise -65 dBc/Hz at 1kHz
(SSB) -80 dBc/Hz at 10kHz
-95 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.2 : 1
FREQUENCY BANDS AVAILABLE
Typical service 8000
Input frequency (GHz) 3.40 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750
3.4 to 4.2 GHz, VSAT, Tx/Rx, TVRO, Maritime
