Norsat 8525RN Series DRO C-Band (3.7 to 4.2 GHz) Digital LNB
3.7 -4.2 GHz, 5.15 GHz L.O. Frequency, Output: 950 to 1450 MHz

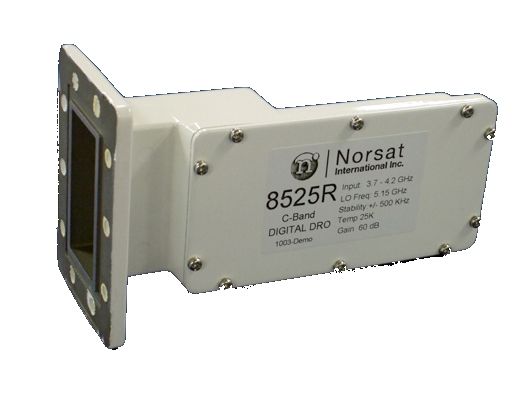

8525RN DRO C-Band LNB
The Norsat 8525RN Series C-Band LNB has a local oscillator frequency of 5.15 GHz and operates from 3.7 - 4.2 GHz. The 8525RN LNB features a 25K noise temperature configuration. This DRO Norsat C-Band LNB has a CPR229 waveguide input and offers a Local Oscillator (L.O.) stability of ±500 kHz. Type-N connector RF output.
LNB Models
8525RF - F-connector
8525RN - Type-N
Norsat 8525R Ordering Information
Terrestrial Interference Graph
Outline Diagram
TYPICAL SPECIFICATIONS
Input frequency 3.70 to 4.20 GHz
Output frequency 950 to 1450 MHz
L.O. frequency 5.15 GHz
Noise temperature 25K
L.O. stability ±500 kHz or ±250 kHz
(over temperature excl offset)
Phase noise -70 dBc/Hz at 1kHz
(SSB) -90 dBc/Hz at 10kHz
-100 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.2 : 1
Conversion gain 62 dB
Output P1dB 8 dBm
Power requirements +15 to +24 V supplied through
center conductor of IF cable
Current drain 130 mA
Input Waveguide CPR229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm
(7.1 x 4.0 x 2.8 in)
Weight 425 g / 12.5 oz
Temperature Range -40°C to +60°C
VSAT, Tx/Rx, TVRO, Maritime
