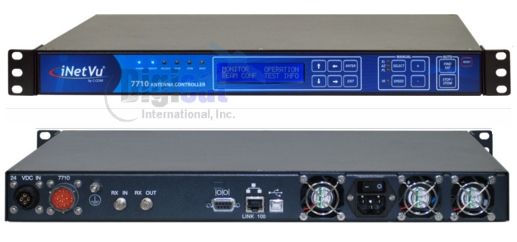

iNetVu 7000 Series 7710 Antenna Controller

7710 Auto-Acquire Antenna Controller

The iNetVu 7000 Series 7710 controller (7710) enables simple stand-alone one touch operation to find satellites & stow iNetVu antennas. Typical satellite acquisition time in less than 2 minutes and it's ideal for applications that require a quick, simple setup and reliable operation. Internal DVB receiver provides modem independence and this controller is based on an embedded software solution.

Optional Beacon Receiver

An optional 19” rack mount iNetVu Beacon Receiver (BR300L) is available and has been integrated to work with the iNetVu Controllers. This external self contained compact unit detects the power density of the satellite beacon (930MHz - 2300MHz) and is connected to the controller via an RS232 serial port interface.

Optional GPS/GLONASS Compass

An optional GPS/Glonass based compass is available and has been integrated with the 7710 iNetVu Controllers. This external compact device can be fitted on roof of vehicle beside the iNetVu platform to provide accurate vehicle heading within 1 degree irrespective of the surrounding magnetic field. The precise heading of the antenna translates to a smaller search window and hence faster satellite acquisitions. Interfaces to the controller via RS-232 serial port.

Key Features

 Simultaneous multi-axis movements

 Easy to configure and operate; one touch stand-alone solution

 Single control cable connection to iNetVu® platform

 Front Panel Configurable

 Only works with iNetVu mobile platforms which are equipped with 7720 on-board module

 Supports DVB-S and DVB-S2/ACM frequencies

 Optimal, high-precision antenna pointing

 Remote access and operation via Network, Web and other Interfaces

 Supports inclined orbit satellites

 Integrated with multiple modems

 Works with GPS and GLONASS Satellite Navigation Systems

 Global Position Information available for external devices

 Interoperable with Uplogix’s remote management appliances

 Supported languages by GUI interface: English, Russian, Swedish, Chinese (Mandarin, Traditional) and Spanish

 Standard 2 year warranty

7710 Manual
