iNetVu 1501 1.5M C/Ku-Band Drive-Away Vehicle VSAT Antenna
Vehicular mounted motorized 1.5M carbon fiber auto-pointing SNG VSAT antenna
1501 1.5M Auto-Acquire Vehicle SNG Antenna
The iNetVu 1501 Drive-Away Vehicular VSAT Antenna is a 1.5m auto-acquire satellite antenna system which can be mounted on the roof of a vehicle for Broadband Internet Access over any configured satellite. The system works seamlessly with the iNetVu 7710 controller for lightning fast satellite acquisition even in remote locations.
Auto Satellite Acquisition
The iNetVu 1501 series carbon fiber SNG antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
1.5m Offset, prime focus, carbon fi bre refl ector
Low stow height
Designed to work with the iNetVu® 7710 Controller
Supports hand cranks
Supports up to 100W Redundant BUC directly on feed arm
One button, auto-pointing controller acquires any satellite within 2 minutes
Optimal high-precision antenna pointing
Includes jog controller functions
Remote access and operation via network, web and other interfaces
Modular design makes all major aspects of the antenna field serviceable
Standard 2 year warranty
Application Versatility
The 1501 drive-away system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. Ideally suited for applications that require a quick, simple set-up typically for industries such as SNG, Disaster Management, Oil & Gas Exploration, Mining, Construction, Mobile Offices and Emergency Services.
Specifications
Reflector Size & Material 1.5m Carbon Fiber
Platform Geometry Elevation over Azimuth
Off set Angle 16.97º
Antenna Optics One-piece offset feed, prime focus
Azimuth Travel ± 180º
Elevation Look Angle 0º to 90º
Polarization Travel ± 95º
Elevation Deploy Speed 2º/sec
Azimuth Deploy Speed 6º/sec
Peaking Speed 0.2º/sec
Motor Voltage 24 VDC 10 Amp (Max.)
Environmental
Wind loading Operational 72 km/h (45 mph), Survival Deployed 112 km/h (70 mph), Stowed 160 km/h (100 mph)
Temperature Operational -30º to 55º C (-22º to 131º F)
Survival -40º to 65º C (-40º to 149º F)
Solar Radiation 1000Kcal/h/m (360 BTU/h/sq. ft.)
Rain 10 cm/h (4 in/h)
Humidity 0-100% (condensing)
Thermal Test per MIL-STD-810F, Method 501.4, High/Low Temperatures Vibration Test per MIL-STD-810F, Annex A, Category 4, Truck/Trailer/Tracked Shock Test per IEC 60068-2-27
Electrical
Rx & Tx Cables 2 RG6 Cables - 10 m (33 ft) each
Control Cables: Standard 10 m (33 ft) Extension Cable, Optional Up to 30 m (100 ft) available

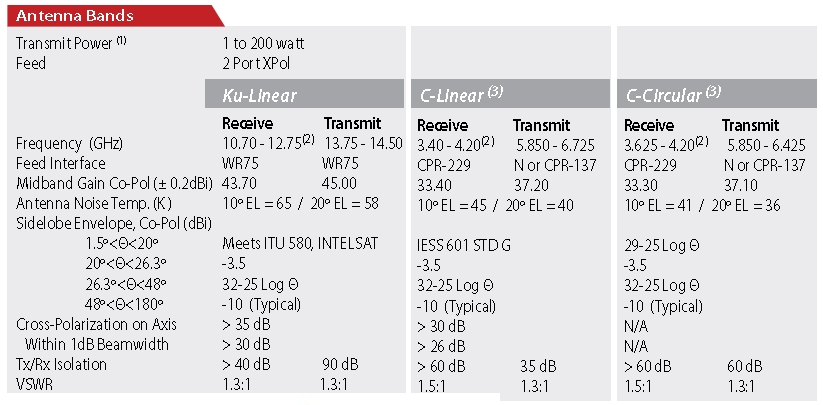

RF Interface
Radio Mounting Feed arm/Inside vehicle
Coaxial RG6U F Type, N Type (optional)
Axis transition Rotary Joint +Twist-Flex Waveguide
Remote Newsgathering, Video Uplinks and other remote applications where a vehicle mounted satellite internet antenna system is required.
