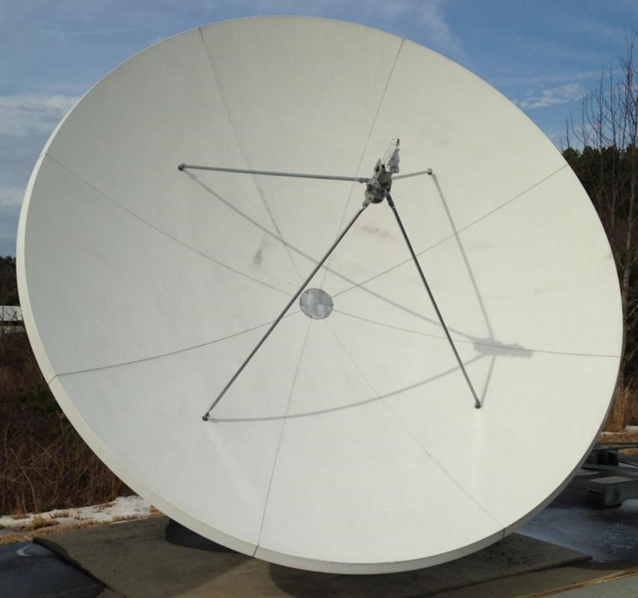

CPI SAT Series 1374 Ku-Band RxO 3.7 Meter VSAT Antenna
The CPI SAT (formerly GD Satcom and Prodelin) Series 1374 3.7 Meter RxO VSAT Antenna offers Ku-band receive only operation from to 10.95 to 2.75 GHz on the receive side.
Key Features
- Precision SMC Reflector
- Fine Elevation Adjustment
- Wide Ku-Band RxO Feed
- Linear, Dual Polarity
- Durable and Rugged Construction for Ease of Shipping and Handling
- Heavy Gauge-Galvanized Steel Az/El Mount
Description
CPI SAT’s 3.7m Wide Ku-Band RxO Antenna Series 1374 is ideally suited for demanding commercial applications. The 8-piece compression molded reflector is precision manufactured for high-efficiency operation. The Az/El mount is designed for easy installation on standard 6” Schedule Pipe
(6.63” or 168mm OD) Installation Mounts and features fine Elevation Adjustment. The Az/El mount is constructed from heavy gauge galvanized steel for strength and corrosion resistance.
Technical Specifications
|
Electrical |
Series 1374-1375 |
|
||||||
|
|
Ku-Band |
|
||||||
|
Antenna Size |
3.7M (12 ft.) |
|
||||||
|
Operating Frequency (GHz) |
|
10.95 - 12.75 |
|
|||||
|
Midband Gain ( +/- .2dB) |
|
50.7 dBi |
|
|||||
|
3 dB Beamwidth |
|
0.5° |
|
|||||
|
Feed Interface |
|
WR 75 |
|
|||||
|
First Sidelobe (typical) |
|
|
||||||
|
Antenna Noise Temperature 20° Elevation 30° Elevation |
|
23 K 22 K |
|
|||||
|
Cross Polarization (Linear) |
>30 dB (on axis) |
|
||||||
|
VSWR |
1.43:1 Max. |
|
||||||
|
Insertion Loss |
0.2 dB Max |
|
||||||
|
Mechanical |
|
|||||||
|
Reflector Material |
Eight Segment Glass Fiber Reinforced Polyester SMC |
|||||||
|
Antenna Optics |
Prime Focus, Axisymmetric |
|||||||
|
Mast Pipe Size |
6” SCH 80 Pipe (6.62” OD) 16.83 cm. |
|||||||
|
Elevation Adjustment Range |
10° to 70° Continuous Fine Adjustment (90° optional) |
|||||||
|
Azimuth Adjustment Range |
360° Continuous / Polar Mount Covers Any 90° Segment of Arc |
|||||||
|
Declination Corrected Polar Range (1305/1345/1375) |
90° Arc Coverage With 36” Actuator |
|||||||
|
f/D Ratio/Feed Support |
.30/Quad Feed Support |
.30/Quad Feed Support |
.30/Quad Feed Support |
|||||
|
Shipping Specifications |
380 lbs. (173 kg.) |
520 lbs. ( 234 kg.) |
575 lbs. (259 kg.) |
|||||
|
Environmental Performance |
|
|
||||||
|
Wind Loading |
Operational Survival |
45 mph (72 km/h) 125 mph (201 km/h) |
|
|||||
|
Temperature |
Operational Survival |
-40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C) |
|
|||||
|
Rain (operational) |
|
1/2” per hour |
|
|||||
|
Ice |
|
--------------- |
|
|||||
|
Atmospheric Conditions |
|
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|||||
|
Solar Radiation |
|
360 BTU/h/ft2 |
|
|||||
All Ku-Band VSAT receive only (RxO) system network applications
