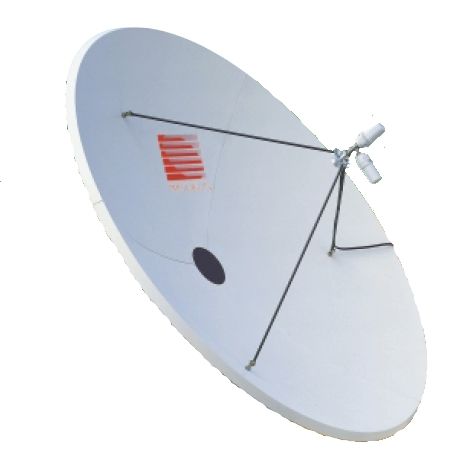

CPI SAT 1252 Model 2.4 Meter Receive Only Antenna
Compression molded reflector, precision reflector panels, easy installation, polar mount available
2.4M 1252 Series Tx/Rx VSAT
The CPI SAT (formerly GD Satcom Technologies & Prodelin) 1252 Model 2.4 Meter Antenna offers exceptional receive only performance for broadcasters, video downlinking and satellite news gathering applications. The 1252 2.4m also offers CPI SAT's precision Axisymmetric Series mount.
|
Operating Frequency (GHz) Midband Gain ( + .2dB) 3 dB Beamwidth Antenna Noise Temperature (normal)20°elevation 30°elevation Feed Interface Cross-Pol Isolation (Linear) First Sidelobe (typical) Insertion Loss VSWR |
3.625 - 4.2 GHz 37.5 dBi 2.1° 33 K 31 K CPR 229 F >30 dB (on axis)- 20 dB 0.2 dB Max. 1.3:1 Max. |
10.95 - 12.75 GHz 47.0 dBi .7° 29 K 28 K WR 75 >30 dB (on axis)- 20 dB 0.2 dB Max. 1.3:1 Max. |
||
|
Reflector Material |
Three Segment Glass Fiber Reinforced Polyester SMC |
|||
|
Mast Pipe Size Elevation Adjustment Range Azimuth Adjustment Range Antenna Optics |
5" SCH 40 Pipe (5.56" OD) 14.13 mm.0° to 90° Continuous Fine Adjustment+ 45° Fine, 360° Continuous Prime Focus, Axisymmetric |
|||
|
Declination Corrected Polar RangeShipping Specifications (Weight) f/D Ratio/Feed Support |
90° Arc Coverage with 24” Actuator, AvailableAz/El: 205 lbs. (93 kg.) Polar: 245 lbs. (111 kg.) .37/Tripod Feed Support |
|||
|
Wind Loading |
OperationalSurvival |
50 mph (80 km/h) 125 mph (201 km/h) |
||
|
Temperature |
OperationalSurvival |
-40° to 140° F (-40° to 60° C)-50° to 160° F (-46° to 71° C) |
||
|
Rain |
OperationalSurvival |
1/2" /hr2" /hr |
||
|
Ice |
OperationalSurvival |
--------1/2" radial |
||
|
Atmospheric Conditions Solar Radiation |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas 2 |
|||
All fixed VSAT communications services in C or Ku-Band
