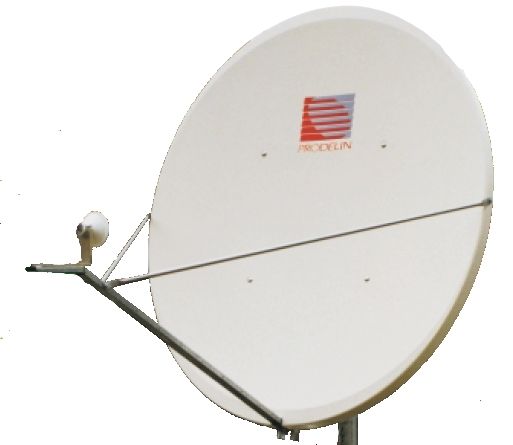

CPI SAT Series 1252 Ku-Band RxO 2.4 Meter VSAT Antenna
AsiaSat & Eutelsat approved, ETSI Certification
The CPI SAT (formerly GD Satcom and Prodelin) Series 1252 2.4 Meter RxO VSAT Antenna offers Ku-band receive only operation from 10.95 to 12.75 GHz on the receive side.
Technical Specifications
|
|
Electrical |
Ku-Band |
|||
|
|
Antenna Size |
2.4M (96 in.) |
|||
|
|
Operating Frequency (GHz) |
10.95 - 12.75 GHz |
|||
|
|
Midband Gain ( +/- .2dB) |
46.50 dBi |
|||
|
|
Antenna Noise Temp (Clear Sky) 20° Elevation 30° Elevation |
41 K 41 K |
|||
|
|
Cross Polarization (Linear) |
>30 dB (on axis) |
|||
|
|
First Sidelobe (typical) |
- 20 dB |
|||
|
|
VSWR |
1.3:1 max |
|||
|
|
Insertion Loss |
0.2 dB Max. |
|||
|
|
Mechanical |
|
|||
|
|
Reflector Material |
Three Segment Glass Fiber Reinforced Polyester SMC |
|||
|
|
Antenna Optics |
Prime Focus, Axisymmetric |
|||
|
|
Mast Pipe Size |
5” SCH 40 Pipe (5.56” OD) 14.13 mm. |
|||
|
|
Elevation Adjustment Range |
0° to 90° Continuous Fine Adjustment |
|||
|
|
Azimuth Adjustment Range |
360°Continuous Coarse |
|||
|
|
f/D Ratio/Feed Support |
0.37/Tripod Feed Support |
|||
|
|
Declination Corrected Polar Range |
90° Arc Coverage with 24” Actuator, Available |
|||
|
|
Shipping Specifications (Weight) |
Az/El: 205 lbs. (93 kg.) |
|||
|
Environmental Performance |
|
|
|||
|
Wind Loading Operational Survival |
50 mph (80 km/h) 125 mph (201 km/h) |
|
|||
|
Temperature Operational Survival |
-40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C) |
|
|||
|
Rain Operational Survival |
1/2” /hr 2” /hr |
|
|||
|
Ice Operational Survival |
--------- 1/2” radial |
|
|||
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|||
|
Solar Radiation |
360 BTU/h/ft2 |
|
|||
All Ku-Band VSAT receive only (RxO) system network applications
