CPI SAT Model 1127 1.2m Rugged Quick Deploy Flyaway Antenna
Worldwide Operation in C, Ku, Ka & X-Band, Ideal for remote broadband access
Model 1127 Transportable VSAT
This product has reached end of life and is no longer available. Please contact us for information on a comparable replacement.

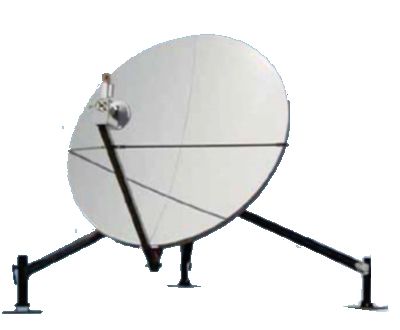

The CPI SAT (formerly GD Satcom Technologies & Prodelin) 1127 is an extremely lightweight 1.2-meter Quick Deploy antenna that's designed for worldwide transmit and receive operation in C, X, Ku and Ka-band. These portable antennas consist of Precision Compression Molded reflectors and stainless steel tripod base mounts. This results in a durable antenna with superior stiffness and high performance under wind loading conditions. The unique shape and the accurate reflector surface provide good sidelobe and cross-polarization performance.
Dual Segmented
The antenna system reflector consists of a two-segment SMC compression molded assembly. Repeatability is maintained with precision registration of the reflector segments and the feed support structure. The 1.2-meter antenna, including the feed, is packaged in three portable cases.
|
Frequency (GHz) |
3.625 - 4.200 |
|
5.850 - 6.425 |
10.950 - 12.750 |
|
13.750 - 14.500 |
|
Antenna Gain at Midband, dBi |
32.3 |
|
35.1 |
41.7 |
|
43.1 |
|
VSWR |
1.30:1 |
|
1.30:1 |
1.30:1 |
|
1.30:1 |
|
Pattern Beamwidth (in degrees at midband) -3 dB |
4.12 |
|
2.98 |
1.35 |
|
1.17 |
|
-15 dB |
8.65 |
|
6.26 |
2.84 |
|
2.46 |
|
Sidelobe Performance |
|
IESS 601 STD G |
|
|
IESS 601 STD G |
|
|
Antenna Noise Temperature 5° Elevation |
61 K |
|
|
71 K |
|
|
|
10° Elevation |
43 K |
|
|
56 K |
|
|
|
20° Elevation |
37 K |
|
|
48 K |
|
|
|
40° Elevation |
37 K |
|
|
47 K |
|
|
|
Power Handling |
|
|
2 kW CW |
|
|
2 kW CW |
|
Cross Polarization Isolation On Axis |
30.0 dB |
|
30.0 dB |
30.0 dB |
|
30.0 dB |
|
Within 1.0 dB Beamwidth |
23.0 dB |
|
23.0 dB |
23.0 dB |
|
23.0 dB |
|
Output Waveguide Interface Flange |
CPR-229G |
|
CPR-137G |
WR-75 Flat |
|
WR-75 Flat |
|
RF Specification |
|
975-3082 |
|
|
975-3085 |
|
Portable VSAT Systems, Remote SNG & Internet
