CPI SAT DMVO/MVO 2.4M Multi Band Vehicle Mounted Satcom Antenna
2.4 Meter, Compact vehicular mount antenna system, C-Band, X-Band, Ku-Band and Ka-Band feed options
DMVO/MVO 2.4M Multi Band Vehicle Mounted Satcom Antenna
This product has reached end of life and is no longer available. Please contact us for information on a comparable replacement.

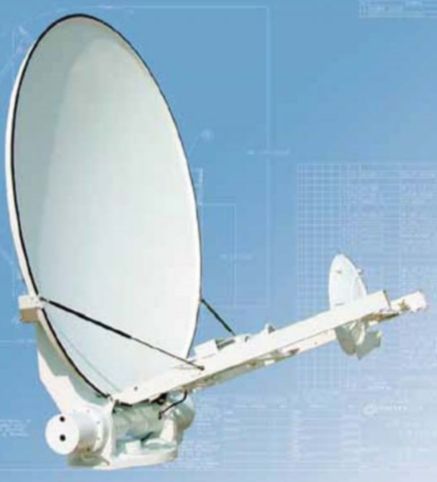

The CPI SAT (formerly GD Satcom Technologies & Prodelin) 2.4m DMVO/MVO antenna is a multiband communications earth terminal capable of providing quick reaction for worldwide communications via satellite. This high efficiency antenna provides excellent gain and low sidelobe pattern characteristics which meet all FCC, Intelsat and Eutelsat requirements.
Interchangeable Feeds
he 2.4m DMVO/MVO uses a 2.4-meter single reflector Multiband Vehicle-mounted Offset-fed (MVO) or Dual Reflector Multiband Vehicle-mounted Offset-fed (DMVO) antenna system. The interchangeable feeds are palletized for quick, easy removal and replacement, allowing the end-user to effectively change frequency bands in the field within minutes.
Features
Multiband antenna system with rapid interchangeability, Optional dual reflector meets INTELSAT and EUTELSAT requirements, Operational within 15 minutes Automatic deploy and stow
Options
Antenna Control System including tracking of geostationary satellites with inclinations up to 10°, Dual reflector configuration available for Ku and Ka-band for improved cross polarization performance, Global Positioning System (GPS), Steptrack and beacon receiver, Tilt sensor, Electronic flux compass, Reflector and feed pad deicing, Waveguide integration
|
Frequency (GHz) |
3.625 - 4.200 |
5.850 - 6.425 |
7.250 - 7.750 |
7.900 - 8.400 |
10.700 - 12.750 |
13.750-14.500 |
20.200 - 21.200 |
30.000 - 31.000 |
||
|
Antenna Gain at Midband, dBi |
37.2 |
41.1 |
43.1 |
43.1 |
46.4 |
48.1 |
51.1 |
53.6 |
||
|
Sidelobe Compliant with |
Intelsat and CCIR 580 |
DSCS requirements |
Intelsat Std E1, Eutelsat |
ITU 580 and 47 CFR 25.209 |
||||||
|
|
|
|
and CCIR 580 |
|
||||||
|
Axial Ratio |
3.01 dB |
2.28 dB |
1.50 dB |
1.50 dB |
|
|
2.00 dB |
2.00 dB |
||
|
VSWR |
1.40:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
||
|
Antenna Noise Temperature 5° Elevation |
69 K |
|
83 K |
|
75 K |
|
205 K |
|
||
|
10° Elevation |
58 K |
|
74 K |
|
61 K |
|
163 K |
|
||
|
20° Elevation |
53 K |
|
70 K |
|
52 K |
|
129 K |
|
||
|
40° Elevation |
54 K |
|
70 K |
|
48 K |
|
103 K |
|
||
|
Cross Polarization Isolation On Axis |
15.3 dB |
17.7 dB |
21.3 dB |
21.3 dB |
35.0 dB |
35.0 dB |
18.8 dB |
18.8 dB |
||
|
Within 1.0 dB BW |
15.3 dB |
17.7 dB |
21.3 dB |
21.3 dB |
35.0 dB |
35.0 dB |
18.8 dB |
18.8 dB |
||
|
On Axis (LP mode) |
30.0 dB |
30.0 dB |
|
|
|
|
|
|
||
|
Within 1.0 dB BW (LP mode) |
23.0 dB |
23.0 dB |
|
|
|
|
|
|
||
|
Pattern Beamwidth (in degrees at midband) -3 dB 2.30 1.44 |
1.13 1.04 |
0.79 0.62 |
0.41 0.32 |
|||||||
|
-15 dB 4.83 3.02 |
2.37 2.18 |
1.66 1.30 |
0.86 0.67 |
|||||||
|
Power Handling 1.00 kW CW |
3.00 kW CW |
2.00 kW CW |
400 W CW |
|||||||
|
Port to Port Isolation Rx/Tx (Rx frequency) 0 dB -97 dB |
0 dB -110 dB |
0 dB -110 dB |
0 dB -30 dB |
|||||||
|
Tx/Rx (Tx frequency) -85 dB 0 dB |
-110 dB 0 dB |
-85 dB 0 dB |
-85 dB 0 dB |
|||||||
|
RF Specification 975-3233 |
975-3148 |
975-3234 |
975-3109 |
|||||||
Highly versatile multi-band satellite operations- Ka, C, X and Ku-band all in one VSAT terminal
