CPI SAT 7.2m Cassegrain Satcom Antenna System
Available in Tx/Rx or Receive Only configurations, Intelsat & Eutelsat Approved
7.2M KXK & KXC Earth Station Antennas
This product has reached end of life and is no longer available. Please contact us for information on a comparable replacement.

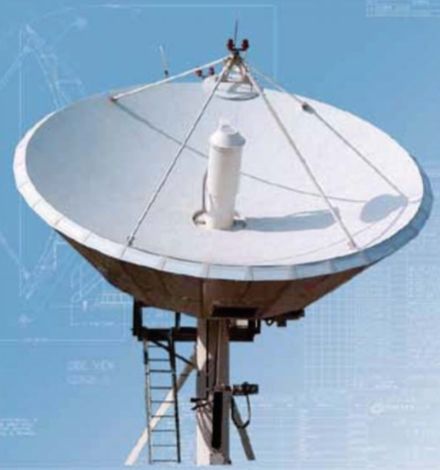

The CPI SAT (formerly GD Satcom Technologies & Prodelin) 7.2-meter antenna delivers exceptional performance for transmit/ receive and receive only applications in L through DBS- band frequencies. This antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly.
RF Characteristics
It features an innovative Cassegrain feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.
ITU & FCC Compliant
The electrical performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat (F3, E3) and Eutelsat (L, S1) requirements.
|
Frequency (GHz) |
3.625 - |
5.850 - |
3.625 - |
5.850 - |
3.400 - |
5.850 - |
10.700 - |
13.750 - |
10.700 - |
17.300 - |
|
|
4.200 |
6.425 |
4.200 |
6.425 |
4.200 |
6.725 |
12.750 |
14.500 |
12.750 |
18.400 |
|
Antenna Gain, Midband dBi (2) |
48.10 |
51.70 |
48.10 |
51.80 |
48.00 |
51.80 |
56.50 |
58.10 |
56.90 |
59.60 |
|
VSWR Pattern Beamwidth (2) |
1.25:1 |
1.25:1 |
1.25:1 |
1.25:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
|
-3 dB, at midband |
0.67° |
0.45° |
0.67° |
0.44° |
0.67° |
0.43° |
0.23° |
0.20° |
0.23° |
0.17° |
|
-15 dB, at midband Antenna Noise Temperature |
1.41° |
0.94° |
1.41° |
0.92° |
1.41° |
0.90° |
0.48° |
0.42° |
0.48° |
0.36° |
|
5° Elevation |
52 K |
|
50 K |
|
53 K |
|
87 K |
|
76 K |
|
|
10° Elevation |
43 K |
|
40 K |
|
44 K |
|
74 K |
|
61 K |
|
|
20° Elevation |
37 K |
|
35 K |
|
39 K |
|
65 K |
|
51 K |
|
|
40° Elevation Typical G/T (dB/K) (3) |
35 K |
|
33 K |
|
37 K |
|
61 K |
|
48 K |
|
|
4.000 GHz, 30 K LNA |
29.8 |
|
30.0 |
|
29.6 |
|
|
|
|
|
|
11.725 GHz, 70 K LNA |
|
|
|
|
|
|
35.2 |
|
36.1 |
|
|
Axial Ratio |
0.50 dB |
0.50 dB |
|
|
|
|
|
|
|
|
|
Power Handling (total) Cross Polarization Isolation |
|
10 kW CW |
|
10 kW CW |
|
10 kW CW |
|
2 kW CW |
|
2 kW CW |
|
On Axis |
30.8 dB |
30.8 dB |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
|
Within 1.0 dB beamwidth Port to Port Isolation |
30.8 dB |
30.8 dB |
30.0 dB |
30.0 dB |
30.0 dB |
30.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
30.0 dB |
|
Rx/Tx (Rx frequency) |
0 dB |
-70 dB |
0 dB |
-50 dB |
0 dB |
-70 dB |
0 dB |
-70 dB |
0 dB |
-75 dB |
|
Tx/Rx (Tx frequency) |
-85 dB |
0 dB |
-85 dB |
0 dB |
-85 dB |
0 dB |
-85 dB |
0 dB |
-85 dB |
0 dB |
|
Sidelobe Performance |
|
|
Meets ITU- |
RS-580, FCC |
|
|
||||
|
RF Specification |
975- |
1039 |
975- |
1256 |
975 |
-1790 |
975- |
2182 |
975- |
2179 |
Designed for 1.5 to 18 GHz operation, meeting FCC and ITU-RS-580 requirements
