SKU
ASC-6.5m
ASC Signal 6.5m Tx/Rx Earth Station Antenna is available to buy in increments of 1

Rugged aluminum and steel construction, 3 Year warranty on structural components, Russian Homologation Certificate # OC/1-AO-136.

6.5M Satellite Communications Antenna

The ASC Signal 6.5 meter earth station antenna provides high gain and exceptional pattern characteristics. The electrical performance and versatility provide the ability to configure the an- tenna with a choice of linearly polarized or circularly polarized 2-port or 4- port combining networks. The 6.5 meter antenna is capable of operation at C-, X- and Ku-band with the selection of feed and combiner systems. This antenna features a computer-optimized dual reflector Gregorian system.

ASC Signal 6.5M C & Ku-Band Antenna front view

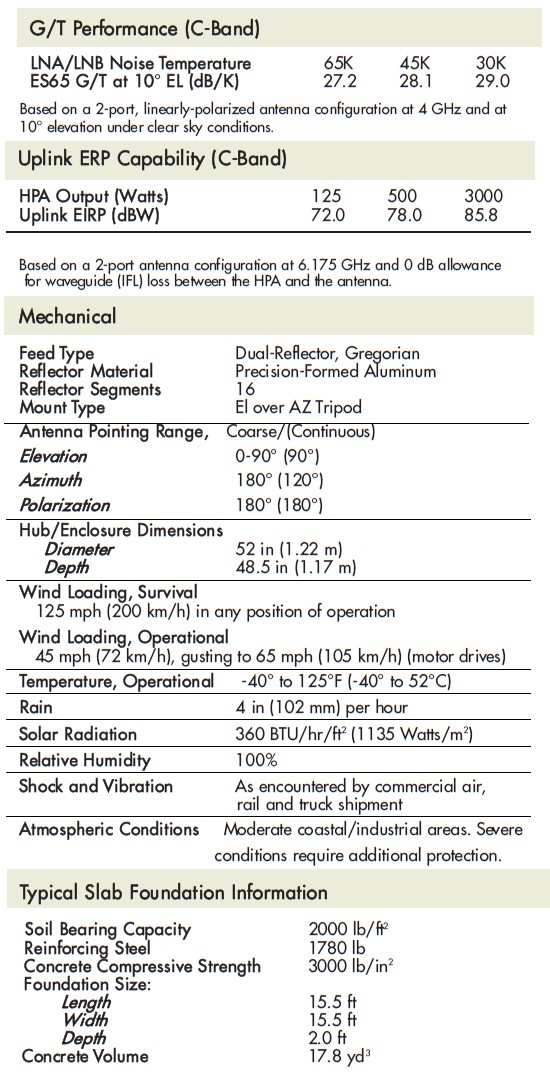

ASC 6.5M antenna specifications

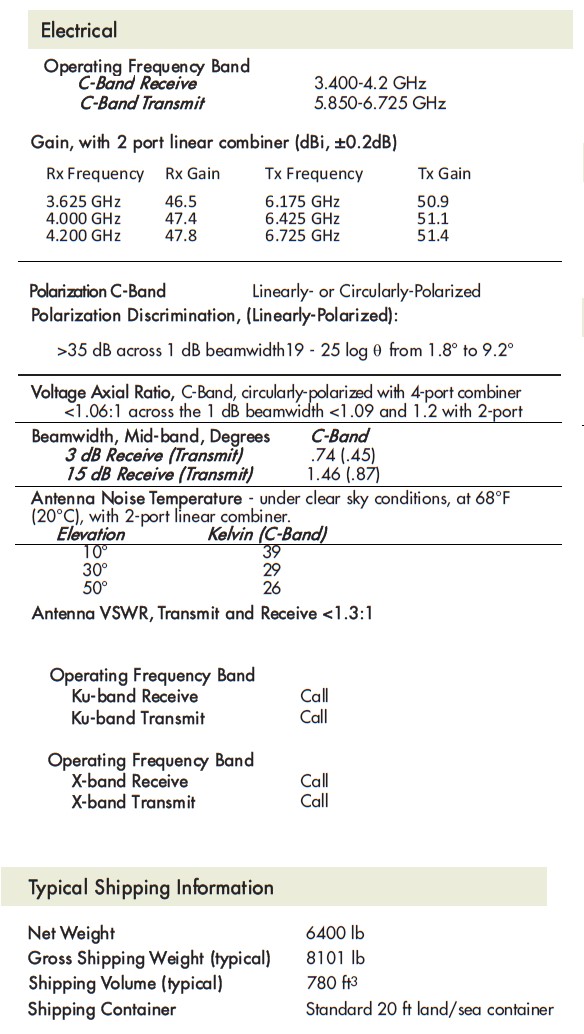

ASC Signal 6.5 Meter Antenna RF Specifications

C, X and Ku band Operation | Rugged Aluminum and Steel – 125 mph (200 kph) Wind Survival
