Baird VSAT Antenna Mount PXL-2
Extra Heavy duty non-pen mount for all VSAT antennas up to 3.7 meters in size
PXL-2 VSAT Non-Pen Mount

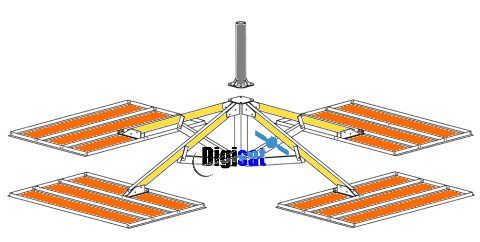

The Baird Mounts PXL-2 Non Penetrating Roof antenna supporting system provides heavy duty galvanized steel construction and large ballast trays. This heavy duty antenna mount is ideal for VSAT system applications up to 3.7 meters in size
MODEL: PXL-2
Non-Penetrating or Penetrating flat roof antenna supporting system.
TYPICAL USAGE
1. Handles up to a 12.0' (3.7M) antenna.
2. Ku & C band - transmit and receive.
3. Pad areas - 25.00 and 33.33 sq.ft.
4. Footprints a. 4' x 6' = 17.7' x 17.7' = 313.29 sq.ft. b. 5'4" x 6' = 20.3' x 20.3' = 412.1 sq.ft.
Finish - Hot dip galvanized Mast Diameter - as required
Mast Height - as required The mount if needed can be equipped with a leveling device.
Ballast required will be recommended based on antenna diameter, type and survival requirements.
It is the customer’s responsibility to see that all applicable codes are satisfied. It is suggested that a structural engineer review the application of this product.
An engineering report is available to assist with determining the proper amount of ballast.
A pad can be supplied to isolate the mount from the roof surface.
Supports all VSAT antennas up to 14' in diameter including 3.7, 2.4 and 1.2M antennas
