Baird VSAT Antenna Mount PL-10
Extra Heavy duty non-pen mount for all VSAT antennas up to 3.0 meters in size
PL-10 VSAT Non-Pen Mount

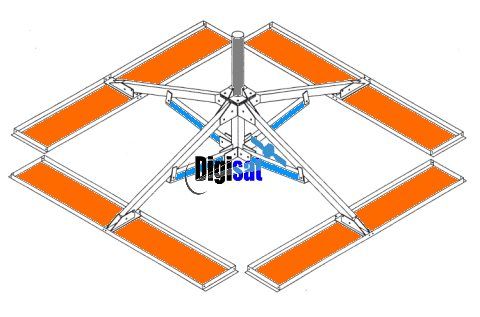

The Baird Mounts PL-10 Non Penetrating Roof antenna supporting system provides heavy duty galvanized steel construction and large ballast trays. This mount is ideal for VSAT antenna applications up to 3 meters in size
MODEL: PL-10
Non-Penetrating or Penetrating flat roof antenna supporting system.
TYPICAL USAGE
1. Handles up to a 10' (3.0M) antenna. In cases where wind velocity, building height and exposure level combine to cause severe wind loading, the PL-10 may not be recommended for an 10' (3.0M) antenna.
2. Ku & C band - transmit and receive.
3. Pad areas - 10.67, 21.33 and 32.00 sq.ft.
4. Footprints a. 1'4" x 8' = 10.71' x 10.71' = 114.70 sq.ft. b. 2'8" x 8' = 13.38' x 13.38' = 179.02 sq.ft. c. 4' x 8' = 16.04' x 16.04' = 257.28 sq.ft.
Finish - Hot dip galvanized
Mast Diameter - as required
Mast Height - as required The mount if needed can be equipped with a leveling device.
Ballast required will be recommended based on antenna diameter, type and survival requirements. It is the customer’s responsibility to see that all applicable codes are satisfied. It is suggested that a structural engineer review the application of this product. An engineering report is available to assist with determining the proper amount of ballast. A pad can be supplied to isolate the mount from the roof surface.
Supports all VSAT antennas up to 10' in diameter including 3.0, 2.4 and 1.2M antennas
