Agilis Satcom ALB290 Series 60W Compact C-Band Block Upconverter

Agilis Satcom ALB280 RM-Series 400W C-Band Indoor/Outdoor BUC (Block Upconverter)

Agilis ALB290 Series 200W C-Band Compact BUC

Agilis Satcom ALB290 Series 200W Compact C-Band Block Upconverter

Be the first to review this product

SKU

ALB290-60-C

Agilis Satcom ALB290 Series 60W Compact C-Band Block Upconverter is available to buy in increments of 1

Ultra compact, weighs 8.6 lbs, Ideal for Mobile VSAT antennas

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

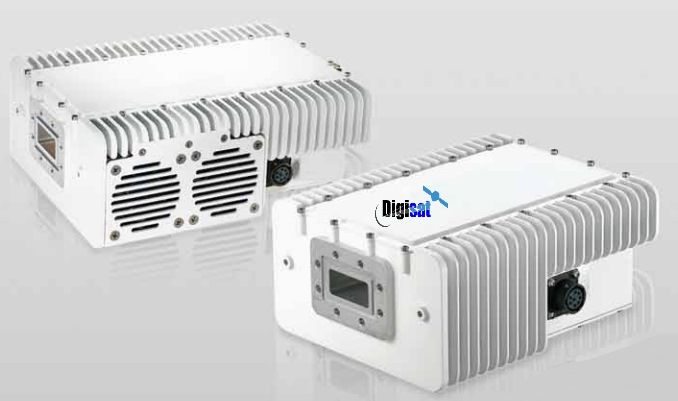

ALB290 Compact C-Band 60 Watt VSAT BUC

Agilis Satcom ALB290 Series 60W Compact C-Band Block Upconverter is an indoor or outdoor RF transmitter for satellite communication systems that's ideal for remote SCPC, MCPC, DAMA, & TDMA Networks. The ALB290 60 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity.

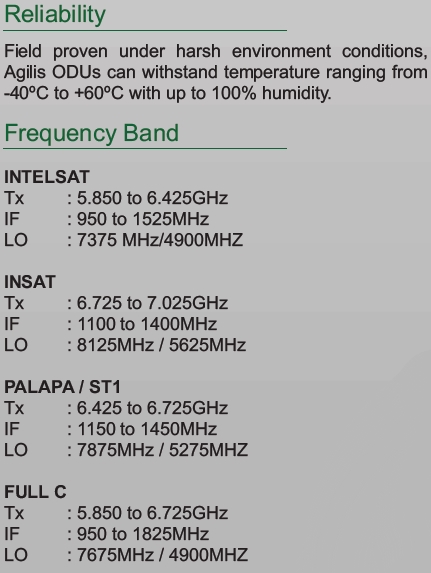

Agilis 60W C-Band Frequency Chart

Antenna Integration

Designed to be mounted on the feed horn, the BUC has excellent efficiency. The unit works on a wide range DC power supply of 38V to 60V. The BUC is able to work up to 60ºC. Innovative and efficient thermal design makes this BUC one of the smallest, lightest and most reliable in the industry. With redundancy-ready feature, the unit can be easily configured to work in 1:1 redundant mode.
