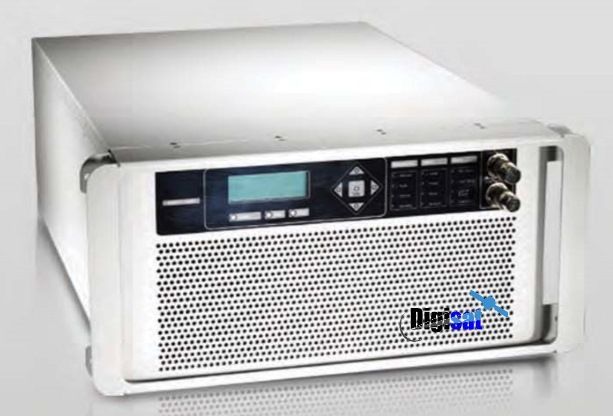

Agilis Satcom ALB280 RM-Series 400W C-Band Indoor/Outdoor BUC (Block Upconverter)

ALB280 C-Band 400 Watt SSPA BUC

Agilis Satcom ALB280 RM-Series 400W C-Band Indoor/Outdoor BUC (Block Upconverter) is an indoor or outdoor RF transmitter for satellite communication systems that's ideal for remote SCPC, MCPC, DAMA, & TDMA Networks. The ALB280 400 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity.

Highly Versatile

Easy to install, it is redundancy-ready and field-proven for any harsh operating environment. The BUC is suitable for both data and voice communication operating in different modulation formats including BPSK, QPSK, QAM and FM. Agilis C-Band BUC is designed for the SCPC (Single Channel Per Carrier) network configurations and for the low or Intermediate data rate for MCPC (Multi-Channel Per Carrier), DAMA (Demand Assigned Multiple Access) or TDMA (Time Division Multiple Access) applications Agilis C-Band BUC offers a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions.

RF Input

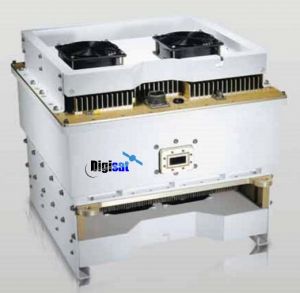

The equipment employs L-Band interface to the indoor unit. Agilis ALB 180 series C-Band BUC is a low cost solution suitable for broadband application (such as DVB-RCS) in satellite IP networks.

Features

Available for all C-Band frequencies

Direct antenna mount

Wide operating temperature range -40ºC to +60ºC

Standard RS232/485 interface & optional

SNMP/HTTP M&C option

Excellent linearity

Extremely reliable

High power efficiency

Excellent phase noise characteristics
