Agilis Satcom ALB290 Series 200W Compact C-Band Block Upconverter

Agilis Satcom ALB290 Series 60W Compact C-Band Block Upconverter

Be the first to review this product

SKU

ALB290-200-C

Agilis Satcom ALB290 Series 200W Compact C-Band Block Upconverter is available to buy in increments of 1

Ultra compact, weighs less than 19 lbs, Full range of C-Band frequencies- Intelsat, INSAT & Palapa

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

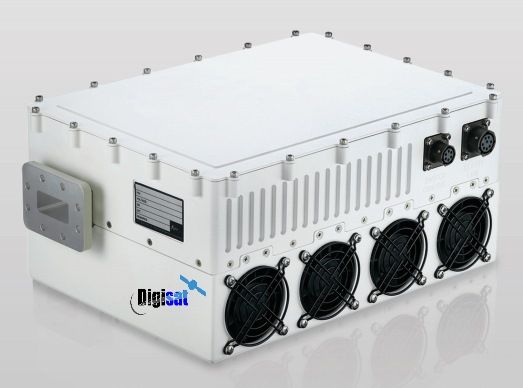

ALB290 C-Band 200 Watt BUC

Agilis Satcom ALB290 Series 200W Compact C-Band Block Upconverter is an indoor or outdoor RF transmitter for satellite communication systems that's ideal for remote SCPC, MCPC, DAMA, & TDMA Networks. The ALB290 200 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity. Designed to be mounted on the feed horn, the BUC has excellent efficiency.

Input Power

The unit works on a wide range DC power supplies of 38V to 60V. The BUC is able to work up to 60ºC. Innovative and efficient thermal design makes this BUC one of the smallest, lightest and most reliable in the industry. With redundancy-ready features, the unit can be easily configured to work in 1:1 redundant mode.
