Wavestream Gilat 757C Powerstream Series C-Band Satcom SSPAs
Transmit Frequency 5.85 - 6.425 GHz, IF Frequency 950-1525 MHz (with BUC option), Frequency Reference (10 MHz on IF) 0 dB ± 5 dB

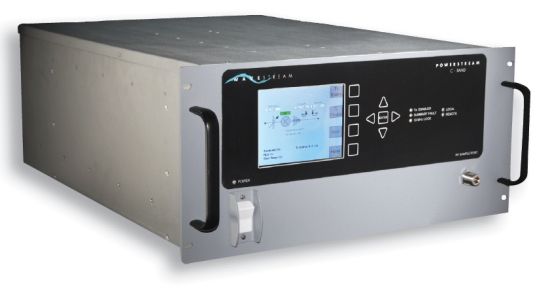

757C 600 Watt C-Band Amplifier
** This amplifier has reached end of life. Please contact Digisat for a suitable replacement. **
The Wavestream Gilat new PowerStream 757C Solid State Power Amplifier (SSPA) provides high output power in a compact rack-mount unit to support broadcast satellite communications systems worldwide. The PowerStream 757C is suitable for mobile and fixed satellite communications where space is limited and greater efficiency is essential.
This high power amplifier is available in two configurations:
Indoor - 757C-i
Outdoor - 757C-o
Easy Installation
Designed as a plug and play TWTA replacement to facilitate system upgrades, the PowerStream 757C incorporates Wavestream’s proven, next generation Spatial Power Advantage technology to provide high output power and lower power draw. For system integrators looking to implement new technology while lowering operating costs, the PowerStream 757C offers improved reliability and significantly reduced energy costs over the lifecycle of the system.
Amplifier Control
The PowerStream 757C-i provides an easy-to-view front panel display screen and quick-touch function keys for convenient access to a variety of system status data, including power, temperature, fault, and local/remote information.
Optional 1:1 Redundancy Kits are available to provide an integrated solution for uninterrupted, reliable broadcast satellite transmissions. The 1:1 Redundancy Kit integrates the waveguide, switch and mounting hardware, and offers ease of installation and subsequent maintenance to accommodate standard 19” rack cabinets.
Rack Mount Specifications
|
Interfaces |
|
|
IFInputConnection |
Type N Female |
|
IFInputImpedance |
50 ohms |
|
IFInputVSWR |
1.3:1 maximum |
|
RFOutputConnector |
CPR-137G Waveguide Flange |
|
RFOutputVSWR |
1.25:1 maximum |
|
RFSamplePortConnector |
Type N Female |
|
RFSamplePort |
-40 dBc typical |
|
ACConnector |
IEC 320 Receptacle |
|
Monitor&ControlConnector |
DB-9 Female or RJ-45 Ethernet |
|
Monitor&Control |
Serial RS-485 (SA-bus) serial control on 9-pin DB9 female socket, and RJ-45 Ethernetwith SNMP support. Color display panel for access to forward and reverse power, temperature and current draw. Front panel LEDs indicate power, Tx enabled, summary fault, 10 MHz lock, local and remote status. Intuitive GUI interface for quick view, status updates. 15-Pin alarms and auxillary equipment control interface. |
|
Physical |
|
|
Size |
24”L x 19”W x 8.75”H |
|
Weight |
95 lbs |
|
OperatingTemperature(Ambient Air) |
-10°C to +50°C |
|
Cooling |
Rear intake and exhaust |
|
RelativeHumidity |
5 - 95% non-condensing |
|
Shock&Vibration |
Designed to withstand 20G at 11 ms ½ sine wave non-operating conditions, and MIL-STD-810E, method 514-4 transportation vibration |
|
Altitude |
10,000 ft above sea level (operating) |
|
Options |
|
|
BUCOption |
|
|
1:1RedundancyKit- to include waveguide, switch, cable connectors and mounting hardware for standard 19” rack cabinet |
|
|
RackMountController-1U rack mount chassis to control any Wavestream amplifier in a 1:1 configuration with LCD display and key status |
|
|
RF Specifications |
|
|
TransmitFrequency |
5.85 - 6.425 GHz |
|
IFFrequency |
950-1525 MHz (with BUC option) |
|
FrequencyReference (10 MHz on IF) |
0 dB ± 5 dB |
|
SmallSignalGain |
75 dB minimum |
|
GainAdjustment |
20 dB, 0.25 dB steps nominal |
|
GainVariation (over frequency at fixed temperature) |
0.6 dB over 36 MHz 3 dB over full band |
|
GainVariation (over temperature at fixed frequency) |
2 dB p-p over operating range |
|
SaturatedOutputPower |
+57.8 dBm nominal |
|
P1dBOutputPower |
> +56.8 dBm |
|
RatedOutputPower |
+56.8 dBm |
|
Intermodulation* (reference to single carrier level at +54 dBm total output power) |
-25 dBc |
|
SpectralRegrowth (For QPSK at 1.5x and OQPSK at 1.0x symbol rate offset at +54 dBm total Output Power) |
-30 dBc |
|
PhaseNoise |
Meets IESS-308/309 -2 dB (with BUC option) |
|
AM/PMConversion(at +54 dBm) |
2.5 deg/dB maximum |
|
NoisePowerDensity-Transmit |
-70 dBW/4 kHz |
|
NoisePowerDensity-Receive |
-150 dBW/4 kHz |
|
OutputSpurious |
-60 dBc |
|
Power |
|
|
ACPower |
180-264 VAC, 50-60 Hz |
|
ACPowerDraw(typical) (at Rated Output Power) |
3.2 kVA maximum |
|
ACPowerDraw (at 3 dB Back-off from Rated Output Power) |
2.4 kVA |
|
PowerFactor |
0.99 Typical (0.95 minimum) |
Indoor Rackmount or Outdoor Antenna mounted configurations, Next Generation SSPA Technology, Space-Saving, Plug and Play for Indoor System Upgrades, High Linearity, Low Power Consumption, Instant On, No Warm Up Time
