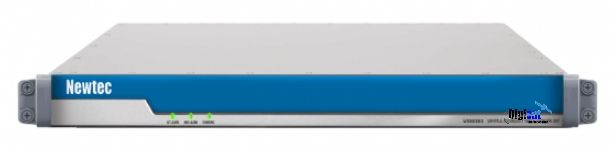

Newtec Satcom USS0203 Universal Redundancy Switch Extension Unit
Switchable signals: ASI, IP, IF, L-band and RF-band, Logical GbE Switching for interfacing with IP modems, User-configurable switching logic
USS0203 Redundancy Extension Unit
The Newtec USS0203 is used for complex redundancy configurations, in up to seven extension units. Grouping of subgroups of devices and switches allows 1 USS system to monitor and configure several independent redundancy setups thereby allowing a compact solution for covering redundancy needs of a complex setup.
Switching can be done automatically through alarm contacts, manually through the front panel, a dedicated webGUI, or remotely via a monitoring and control system. When the automatic mode is activated, the USS0202 monitors continuously the protected devices. In case of alarm on one of those, the USS0202 triggers a redundancy switch towards the spare device, according to rules defined by the set of parameters governing the switching operation.
