Norsat RSW LNB Redundant Switching System
Receive redundancy for LNB: X, C, Ku, or Ka Band, LNA: X. C, Ku, or Ka Band, BDC: X, C, Ku, or Ka Band, with internal or external reference
RSW LNB / LNA Redundant Switch

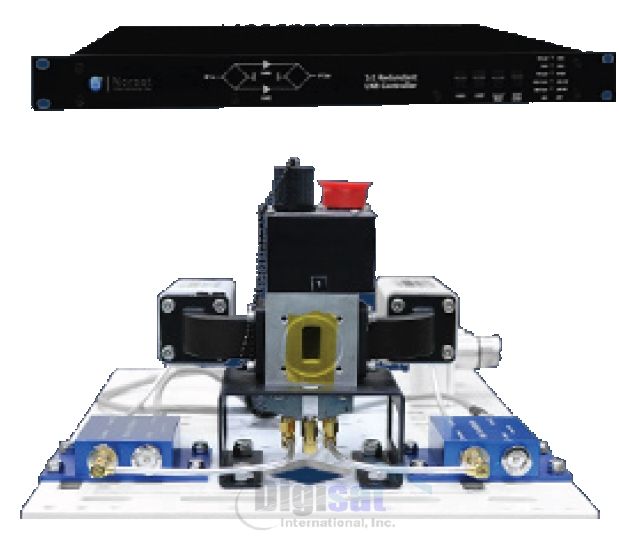

The Norsat RSW Redundant LNB Switch Systems automatically detect signal faults and switch to an alternate LNB or LNA. This provides maximum satellite service availability for receive-side signal continuity which is maintained via continuous power detection, and upon detecting a fault, signal is automatically switched to the reserve LNB.
Available for either 1:1 or 1:2 redundancy applications, and in either IDU or headless configurations, Norsat LNB/LNA Redundant Switch solutions combine the reliability and performance pedigree of down conversion products with the ultimate system safeguarding solution for remote and challenging satellite terminal installations.
Features
• C, X, Ku, and Ka-band Systems available
• Automatically detect LNB/LNA failure via DC current
• Fully automatic or manually-commanded redundancy
• 1RU - 19” IDU with easy-to-read LED status indicators
• M&C interface, with optional remote/SNMP available
Controller

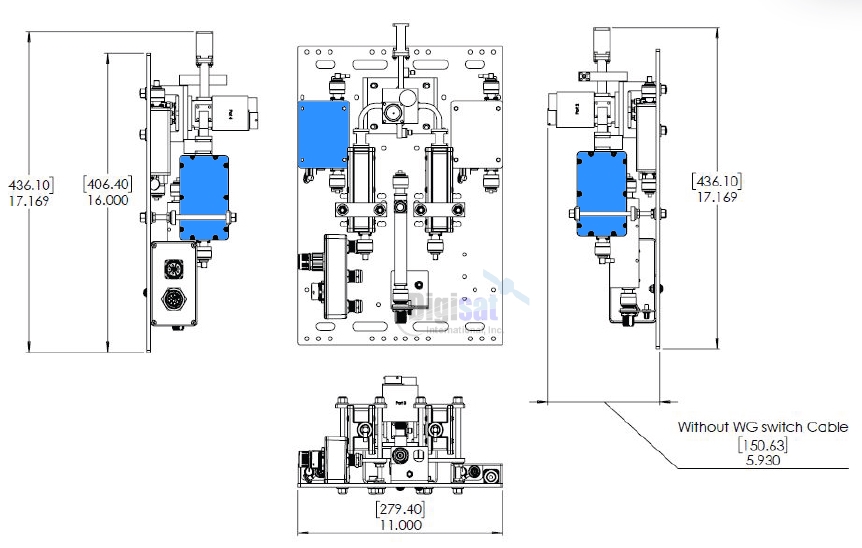

Mechanical Dimensions
Receive Chain Redundancy LNB: X, C, Ku, or Ka Band LNA: X. C, Ku, or Ka Band BDC: X, C, Ku, or Ka Band Internal or External reference Fault indications
Redundancy Configurations Receive chain 1:1 Receive chain 1:2 Receive chain Dual 1:1 Receive chain 1 of 2 BDCs Receive chain 1 of 3 BDCs Receive chain 1 or 2 of 4 BDCs Transmit chain 1:1 Transmit chain 1:2 Transmit chain Dual 1:1
Environmental
IDU Operating Temperature: 0 to +55 degrees Celsius ODU Operating Temperature: Per LNB/LNA specifications Relative Humidity: Up to 95% non-condensing
Mechanical
IDU

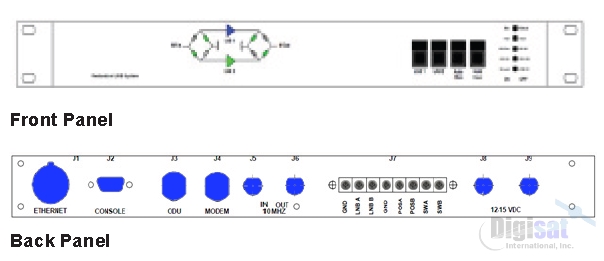

Dimensions: 19’’ x 1.75’’ x 20’’ max Connectors (rear panel) RF: SMA, N or F female L-band: SMA, N or F female 10MHz: BNC DC Input: BNC
ODU
Overall Dimensions: 17” x 11” x 6” typical
Connectors: N type for RF Barrier Strip for DC signalling
Options: ODU connections to customer spec
IFL Length: 30m standard Optional length available
Receive chain redundancy for LNBs and LNAs in a 1:1 or 1:2 configuration
